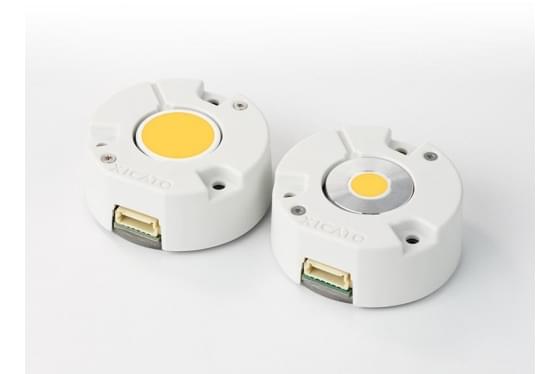

Xicato XIM Gen4 (BLE) - The Bluetooth and Driver-Integrated LED Module - is the foundation of an ecosystem of software, sensors, switches, and accessories, integrating the industry's best light source, driver, and wireless control system with Bluetooth beacons capability, all in a 50mm unit.

To the standard XIM, XIM Gen4 adds Bluetooth wireless connectivity and the distributed intelligence required to respond to all types of sensors, switches, and mobile app commands. XIM Gen4 is a control system, a beacon, and an intelligent IoT (Internet of Things) node that fundamentally changes the economics of lighting control, smart spaces and the lighting industry.

Xicato Standard Series products are designed to provide excellent, natural color rendition with high efficiency. XIM Standard Series comes in 2700K, 3000K, 3500K and 4000K CCT, and in flux packages from 700 to 3000 lumens, delivering typical CRI (Ra) of 83, and consistently high R values across all 15 CIE CRI samples. 19mm and 9mm LES options. DALI and 1-10 versions. Powerful ARM Cortex M0 32-bit 48Mhz processor. Manual or Automated Control. -10 dBm to +9.5 dBm Transmit Power.

Available in 9mm

• 700lm: 2700K, 3000K, 3500K, 4000K
• 1300lm: 2700K, 3000K, 3500K, 4000K
• 2000lm: 27000K, 3000K, 3500K, 4000K

Available in 19mm

• 1300lm: 2700K, 3000K, 3500K, 4000K
• 2000lm: 27000K, 3000K, 3500K, 4000K
• 3000lm: 27000K, 3000K, 3500K, 4000K

See specification for more information
