Downloads : technical modifications reserved

Specificaties Betacalco Micro Triangle SE Wall (pdf)

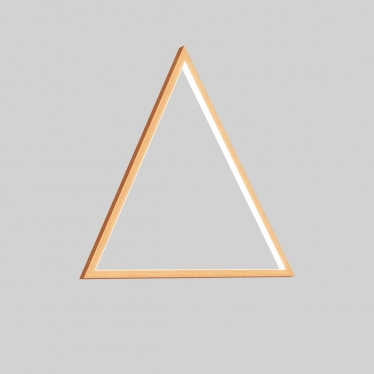

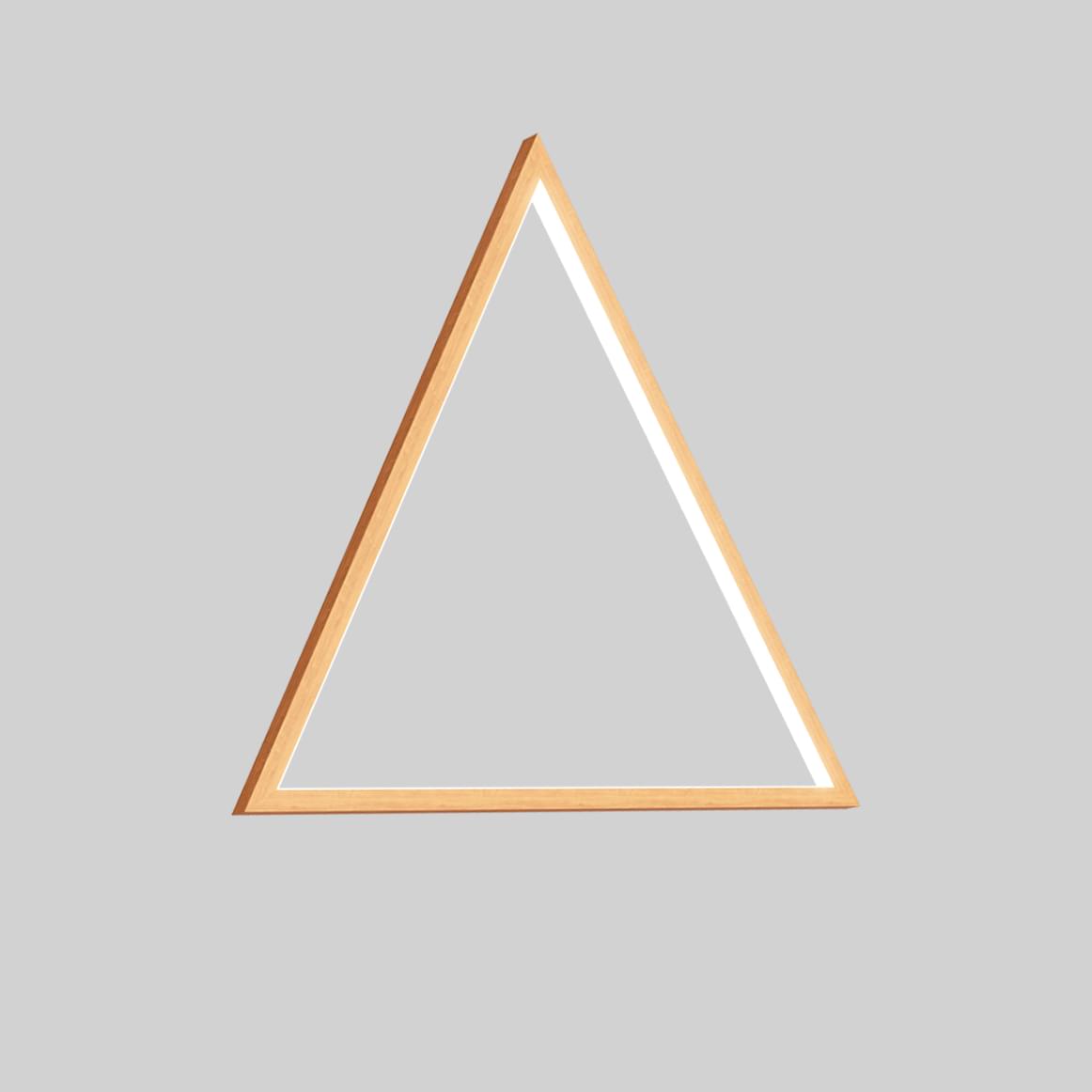

Beta-Calco Micro Triangle SE Wall

  • Body: Aluminium, Equilateral Triangle
  • Finish: Powder coated.
  • Diffusers: Frosted acrylic.
  • Drivers: Remote, HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming standard. Wire size 18 AWG - max distance (from fixture to drivers)40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.
  • L70 @25oC: > 50,000 hrs.



See specification for more information.
