Downloads : technical modifications reserved

Specificaties Betacalco Micro Triangle II susp (pdf)

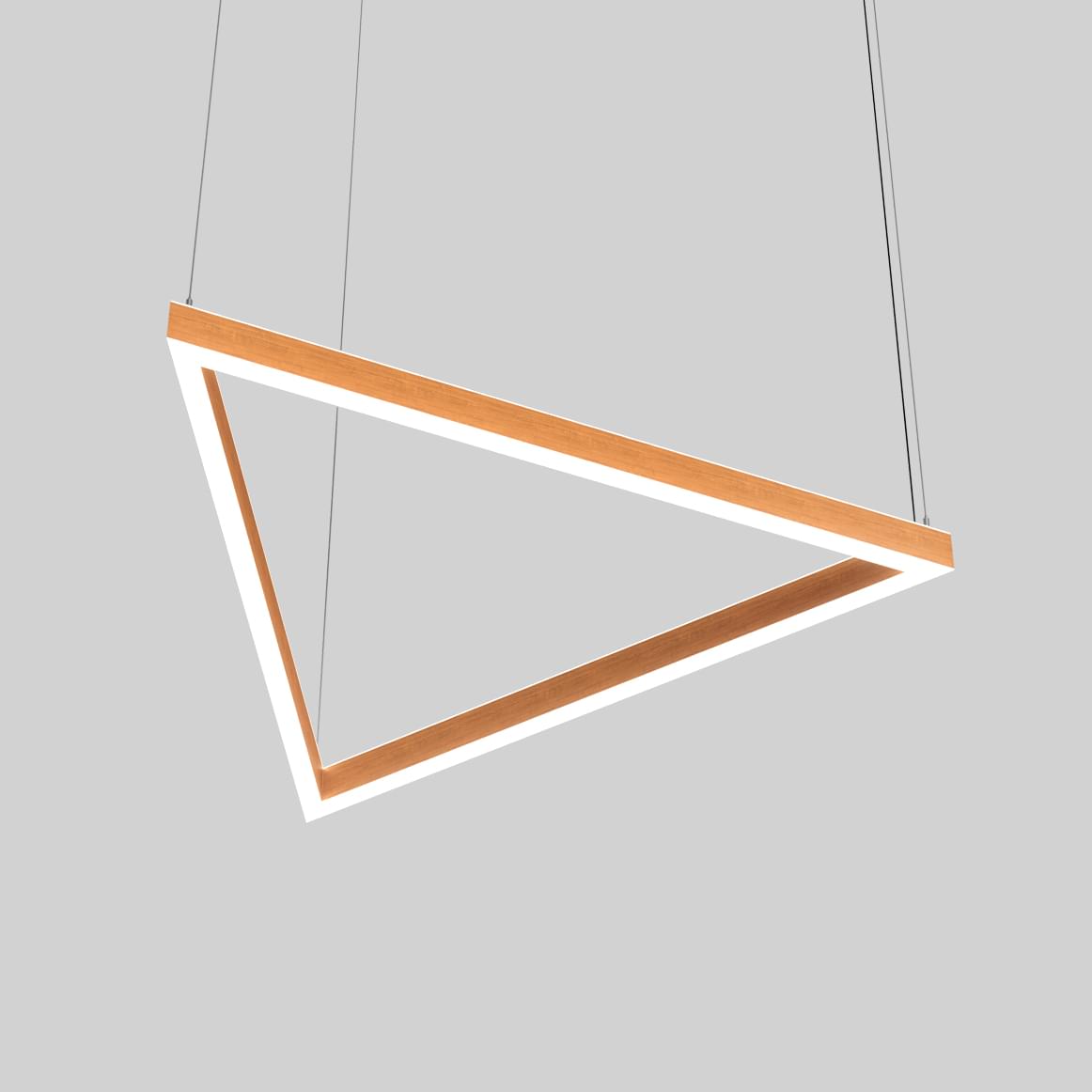

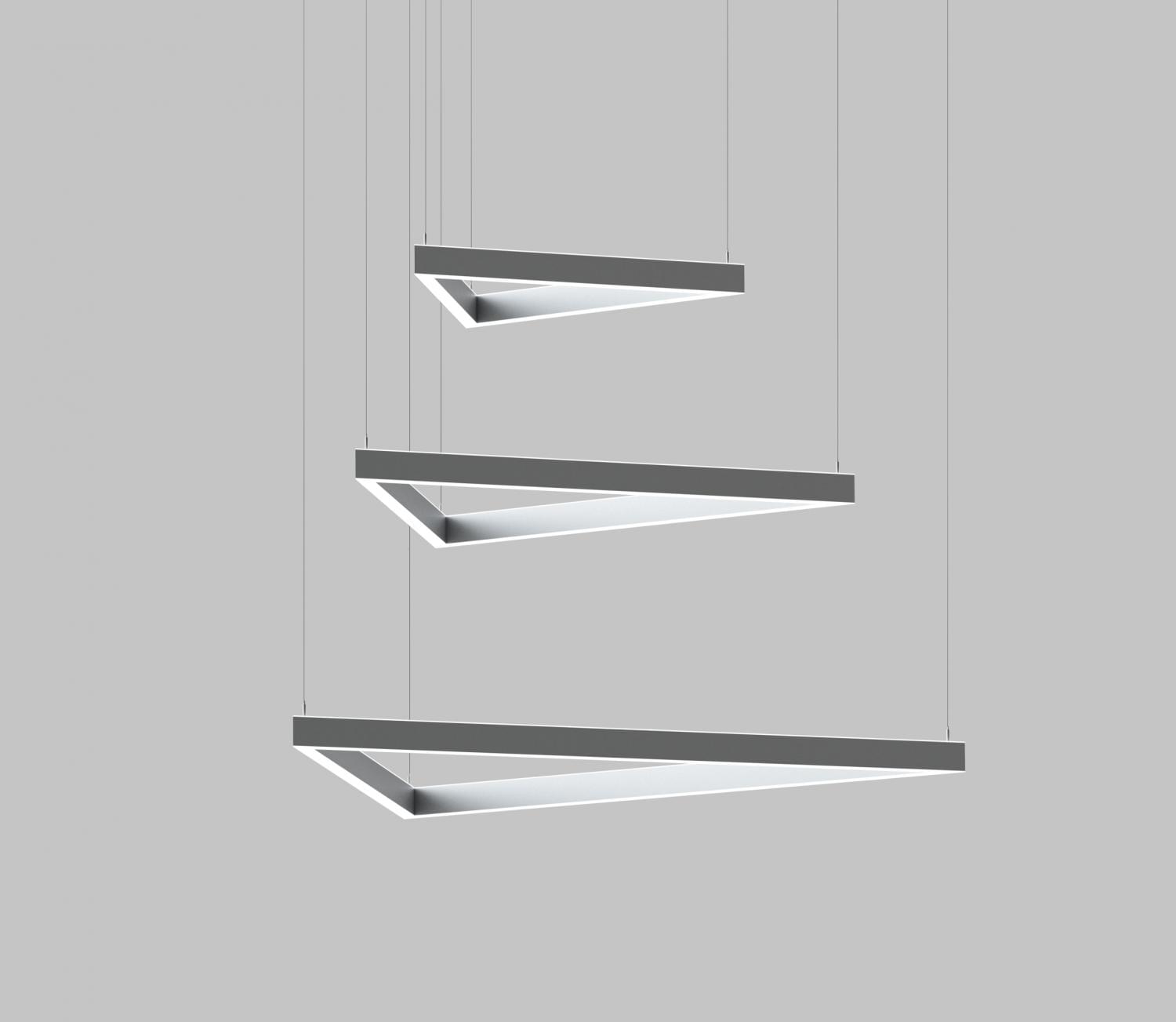

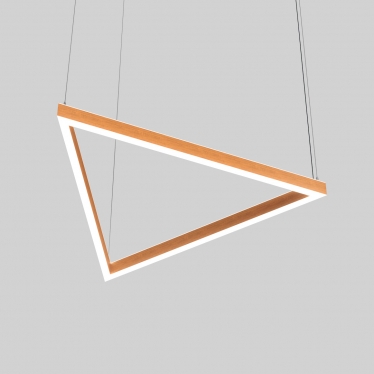

Beta-Calco Micro Triangle II Susp

  • Body: Aluminum, Equilateral Triangle
  • Finish: Powder coated for standard finishes (black, metallic silver & white).  For wood grain finishes the canopy will be white.
  • Suspension: Stainless steel cables.
  • Power cable: Silver braided.
  • Drivers: HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming.
  • Remote Mounting Of Drivers: Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.
  • Mechanical: Luminaires mount directly over J box (by others - North America only).
  • Diffusers: Frosted acrylic.
  • L70 @25oC: > 50,000 hrs.
  • Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI) for White LEDs only.
  • Approvals: Damp Location (Indoor use only).

See specification for more information.
