Specifications Betacalco Micro Straight II (pdf) |

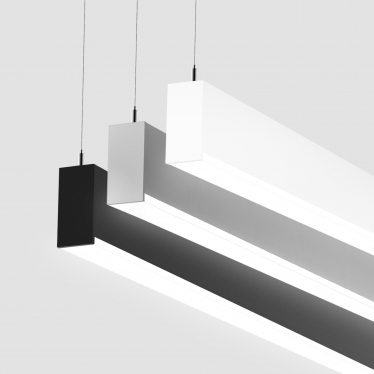

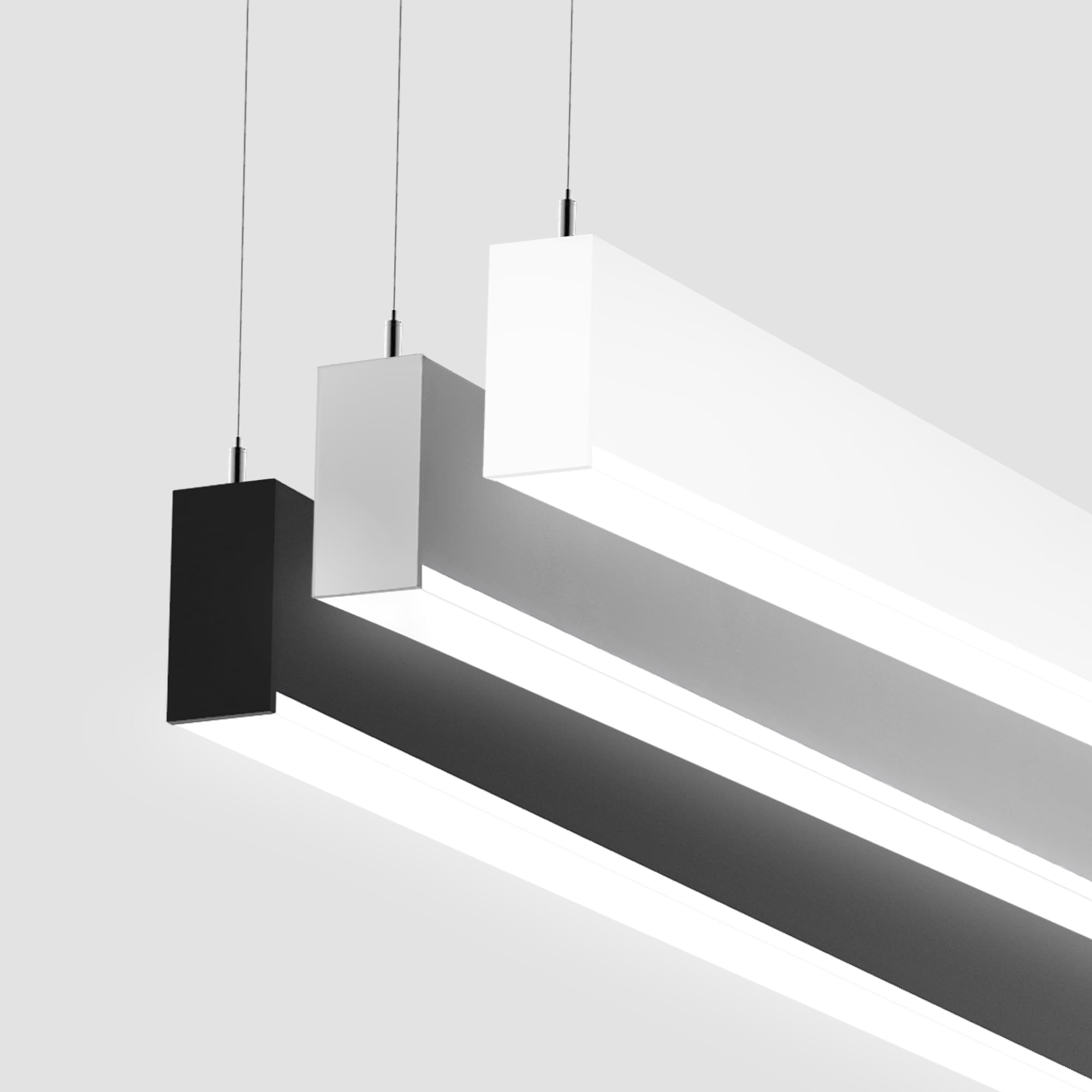

Beta-Calco Micro Straight II
- Sleek 1” x 2” (25mm x 58mm) profile
- High efficiency frosted acrylic diffuser with 123 LPW delivered
- Direct & Indirect options
- Body: Aluminum.
- Finish: Powder coated.
- Suspension: Stainless steel cables. Vertical suspension for remote drivers.
- Power cable: Silver braided.
- Remote mounting of drivers: Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.
- Diffusers: Frosted acrylic.
- L70 @25oC: > 50,000 hrs.
See specification for more information.
