Downloads : technical modifications reserved
Specificaties Betacalco Micro Quad Wood II Susp (pdf) |

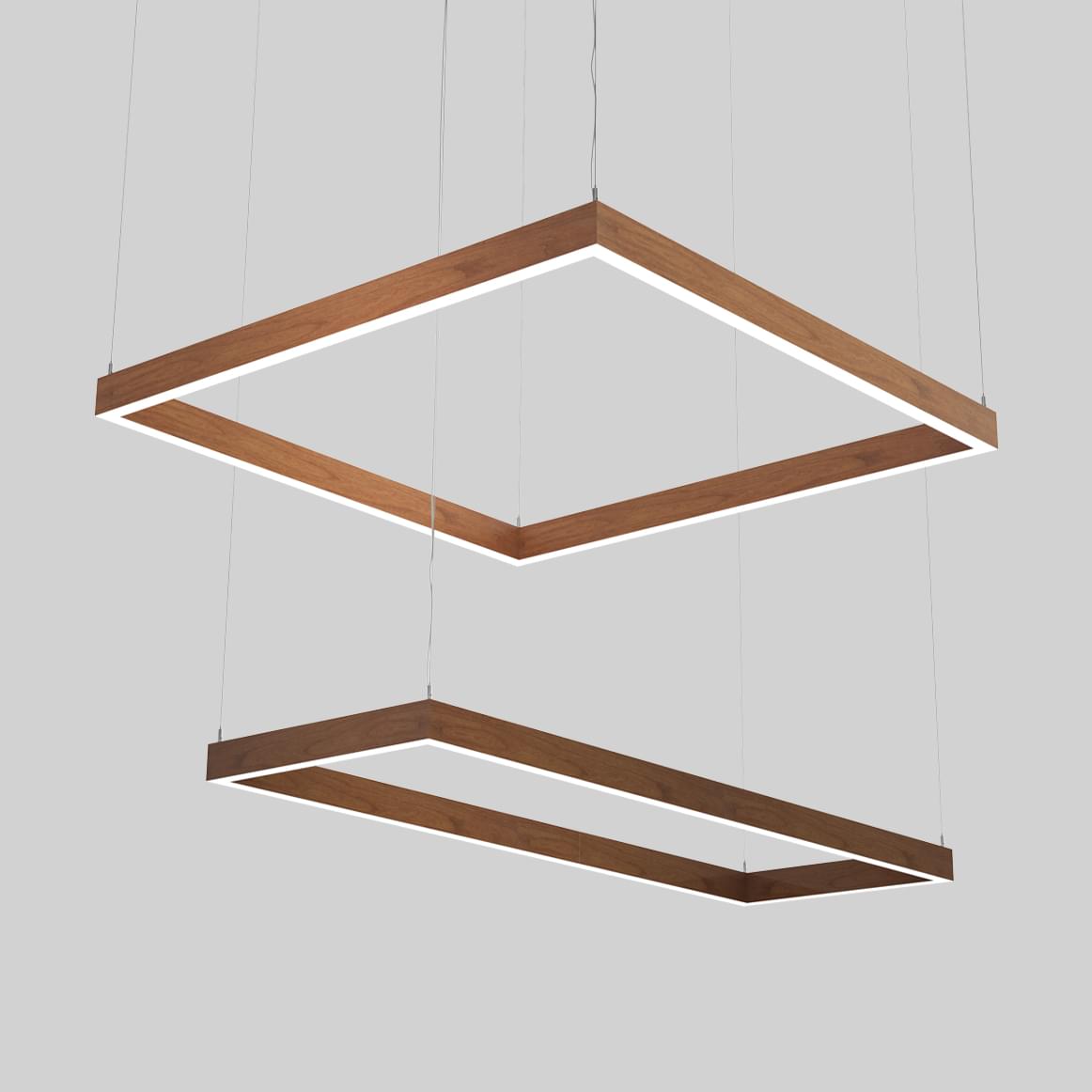

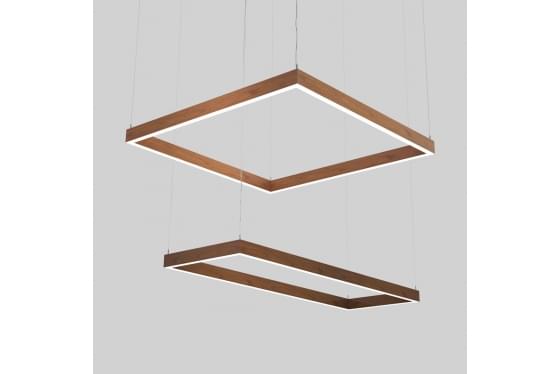

Beta-Calco Micro Quad Wood II
- Body: Aluminum.
- Canopy and Hub: White powder coated.
- Finish: Powder coated.
- Suspension: Stainless steel cables.
- Power cable: Silver braided.
- Drivers: HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming.
- Remote Mounting Of Drivers: Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.
- Mechanical: Luminaires mount directly over J box (by others - North America only).
- Diffusers: Frosted acrylic.
- L70 @25oC: > 50,000 hrs.
- Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI) for White LEDs only.
- Approvals: Damp Location (Indoor use only).
See specification for more information.
