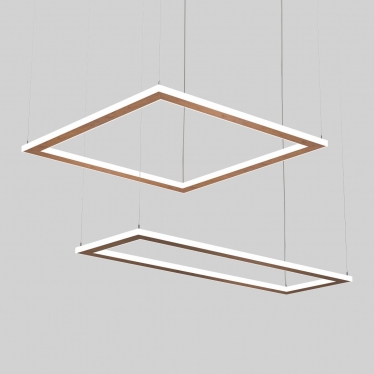

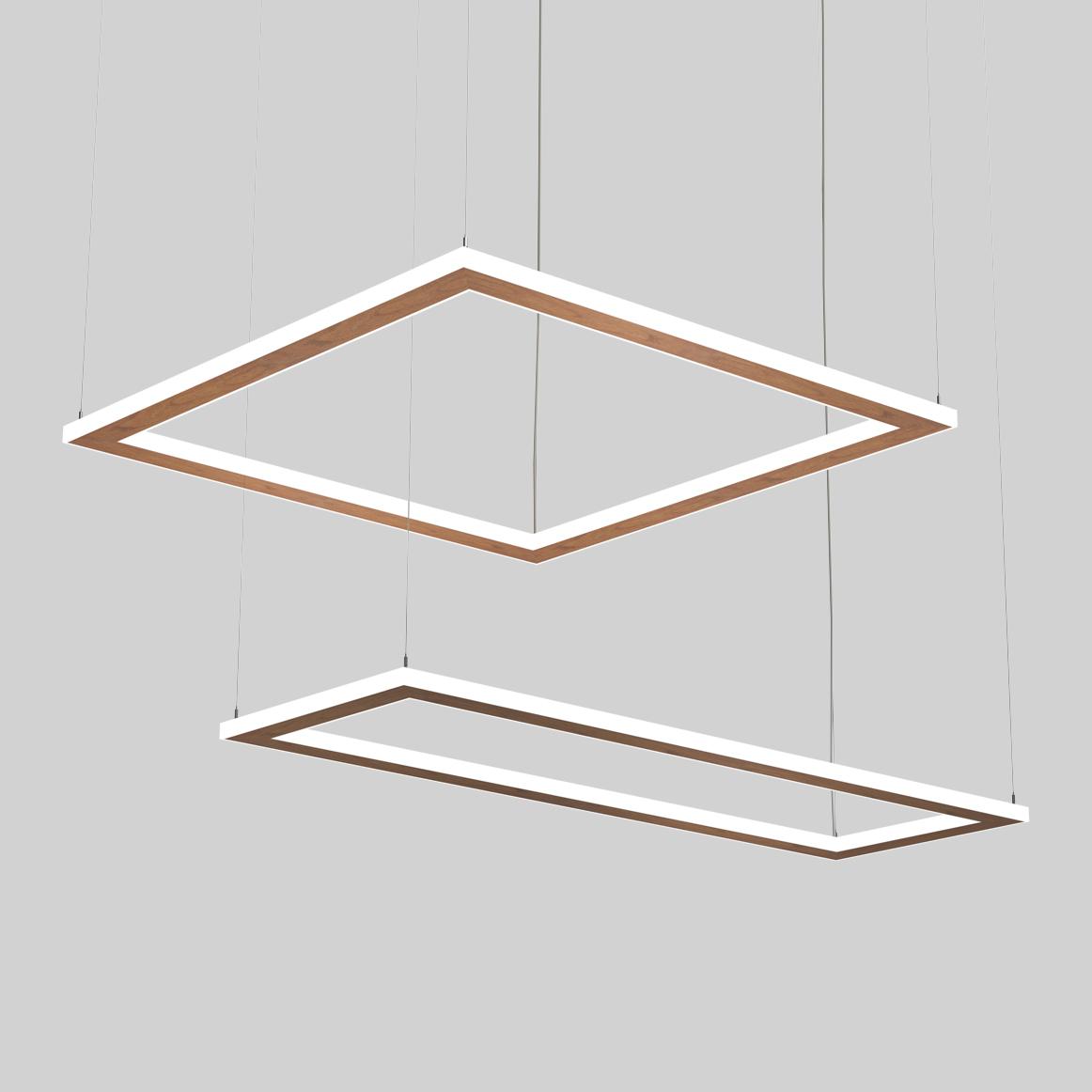

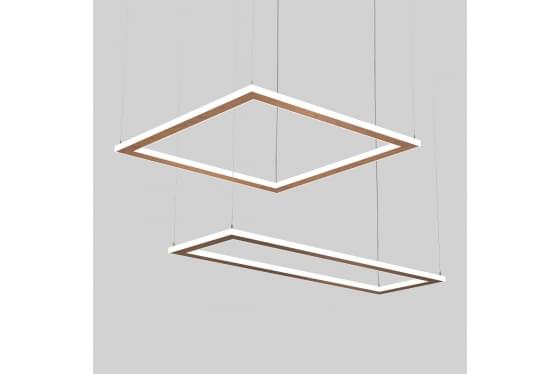

Beta-Calco Micro Quad Wood DE
- Body: Aluminum.
- Canopy & Hub: White powder coated.
- Finish: Powder coated for standard finishes (black, metallic silver & white)
- Suspension: Stainless steel cables.
- Power cable: Silver braided.
- Drivers: HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming.
- Remote Mounting Of Drivers: Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.
- Mechanical: Luminaires attached directly to the J box (by others - North America only).
- Diffusers: Frosted acrylic.
- L70 @25oC: > 50,000 hrs.
See specification for more information.
