afb-betacalco-micro-quad-ii-3
afb-betacalco-micro-quad-ii-3 afb-betacalco-micro-quad-ii-4 afb-betacalco-micro-quad-ii-6 afb-betacalco-micro-quad-ii-2 afb-betacalco-micro-quad-ii-1

Downloads : technical modifications reserved

Specificaties Betacalco Micro Quad II Susp (pdf)

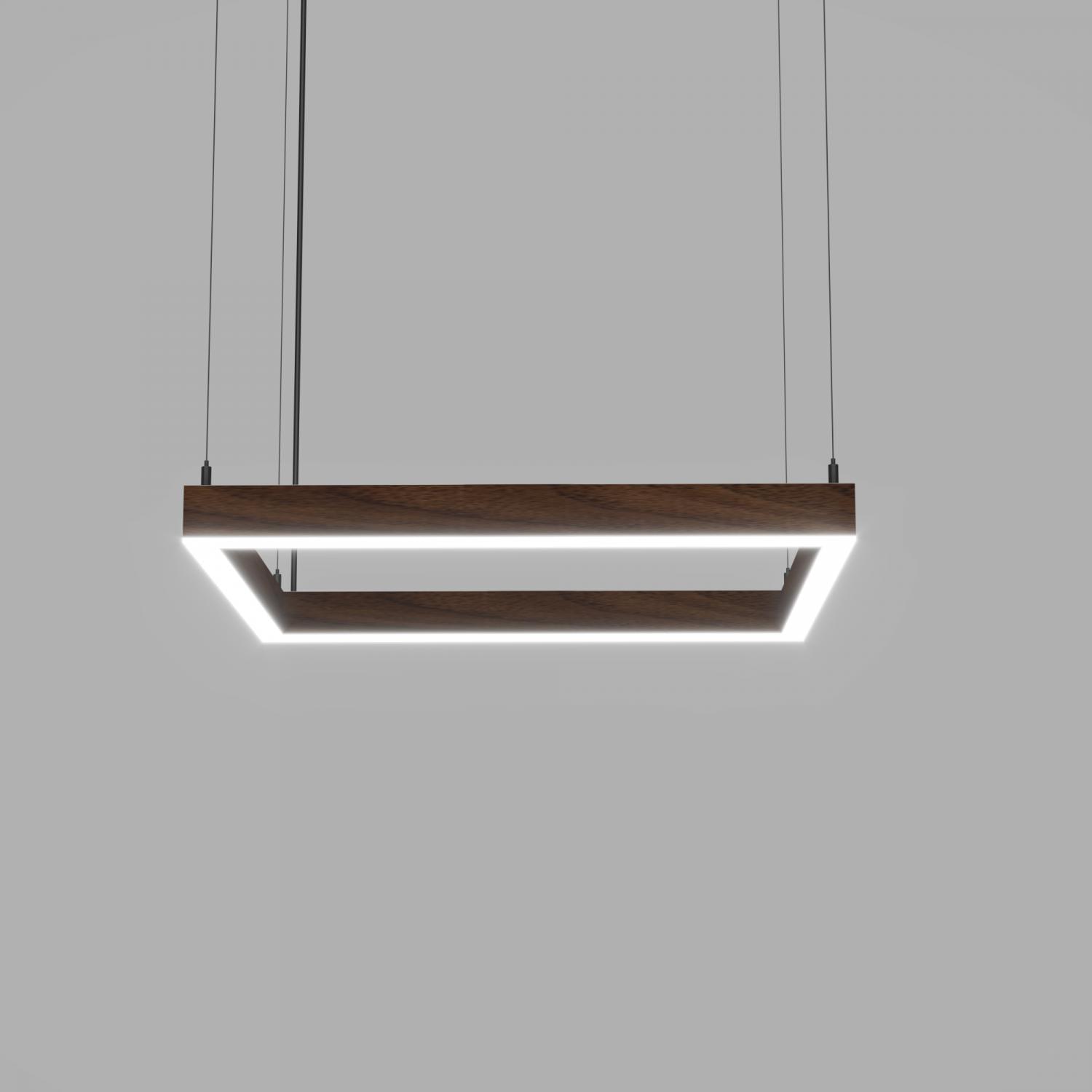

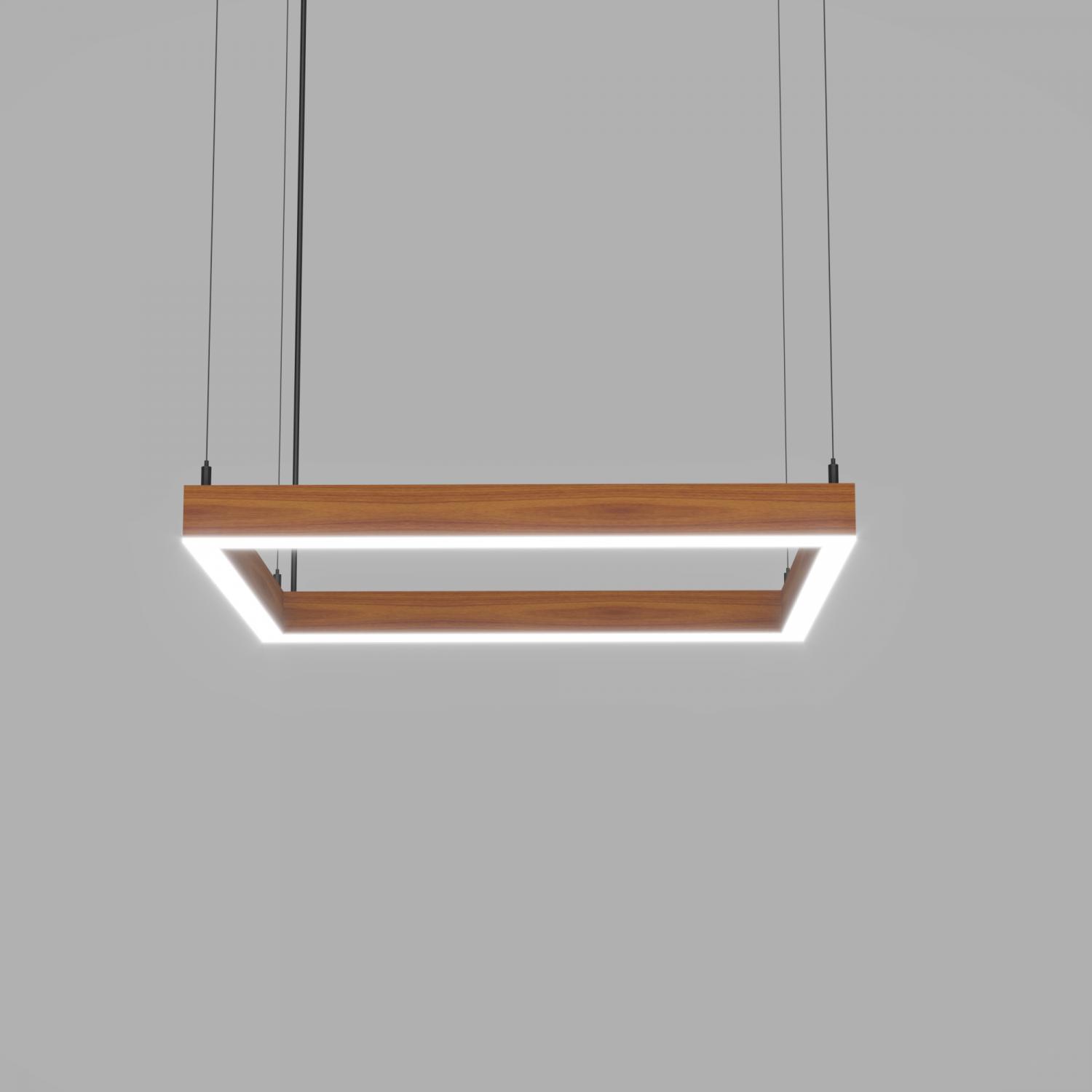

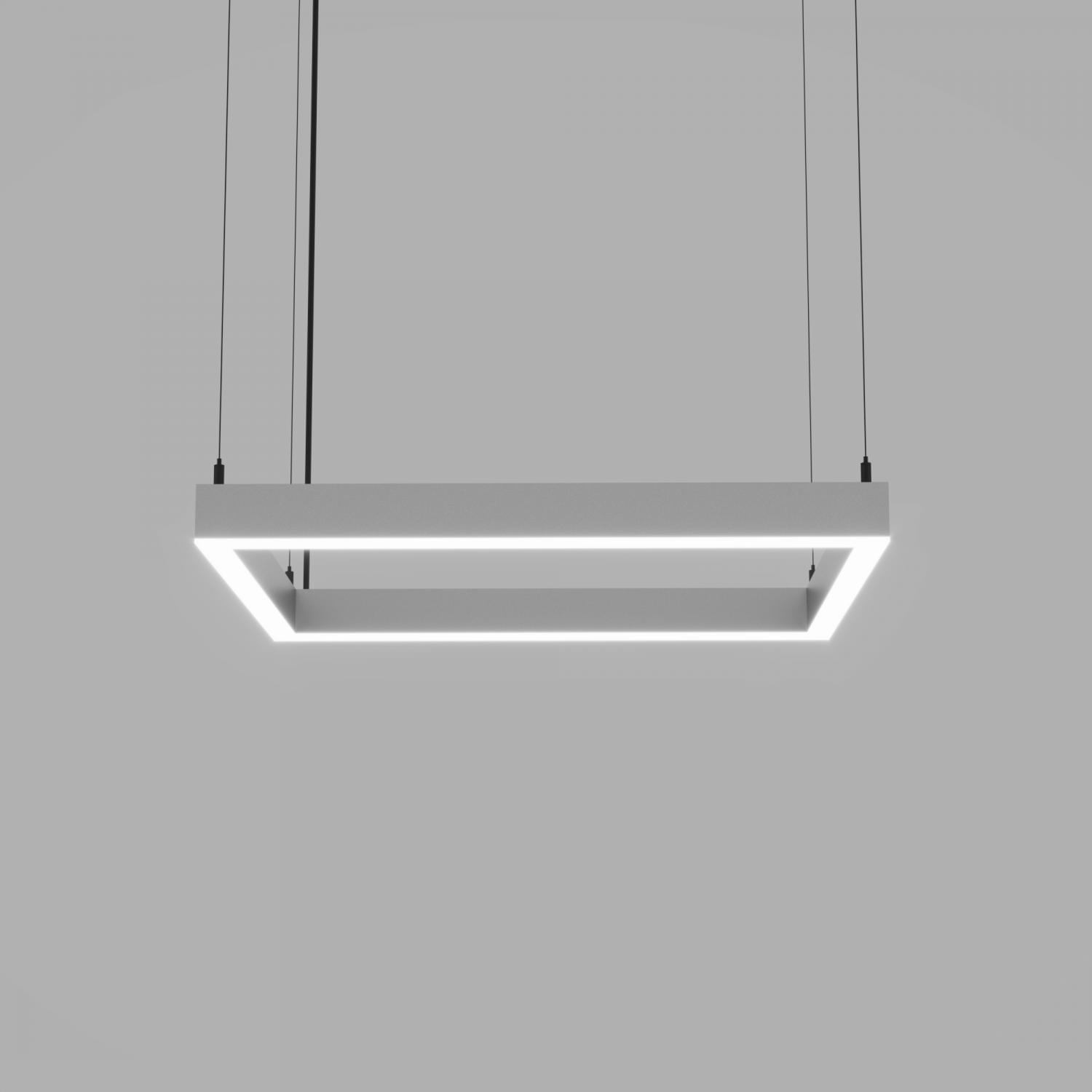

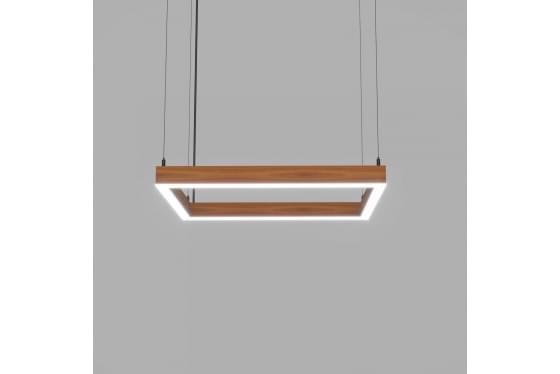

Beta-Calco Micro Quad II Suspended

  • Body: Aluminum.
  • Finish: Powder coated.
  • Suspension: Stainless steel cables.
  • Power cable: Silver braided.
  • Drivers: HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming.
  • Remote Mounting Of Drivers: Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.
  • Mechanical: Luminaires mount directly over J box (by others - North America only).
  • Diffusers: Frosted acrylic.
  • L70 @25oC: > 50,000 hrs.



See specification for more information.
