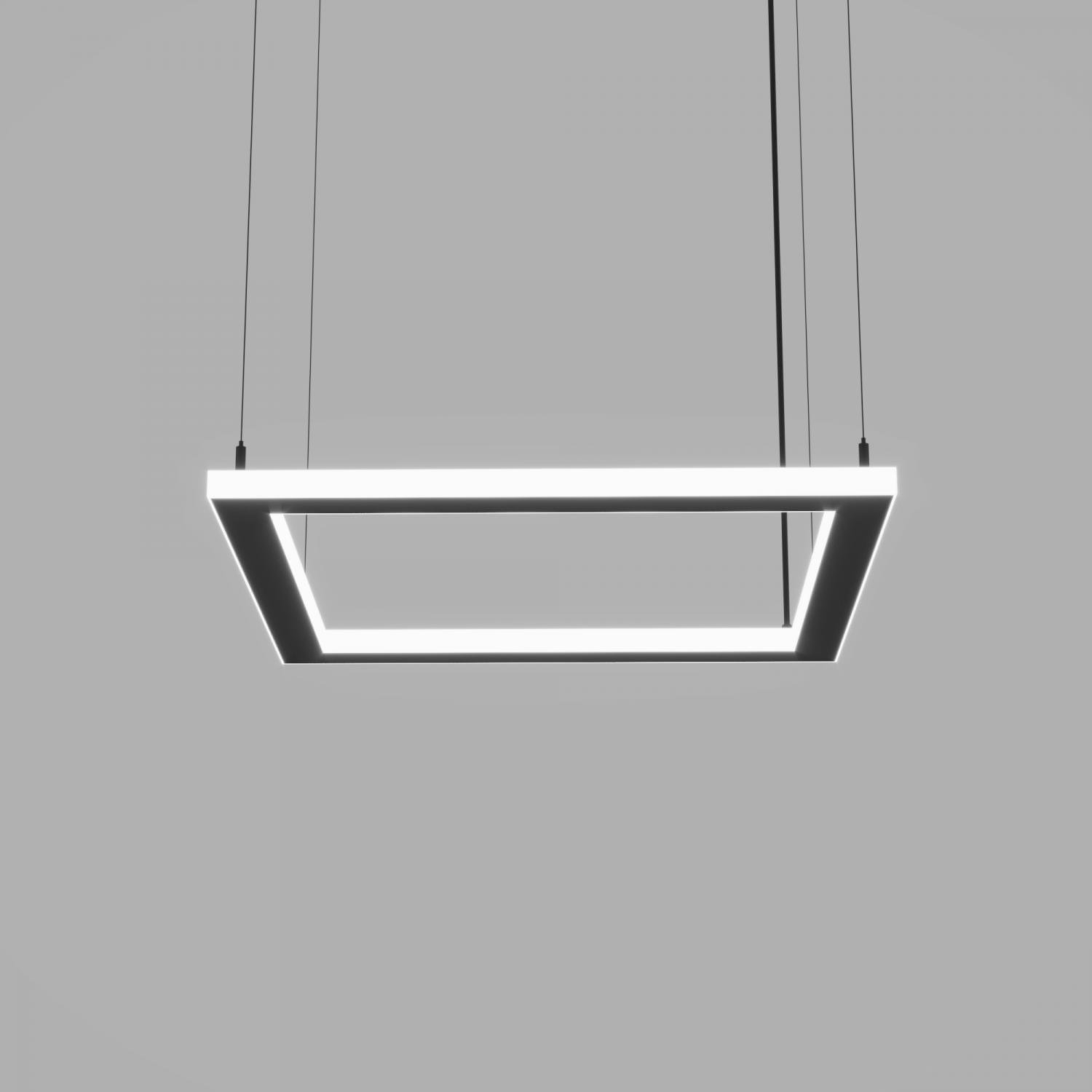

Beta-Calco Micro Quad DE suspended

  • Body: Aluminum.
  • Finish: Powder coated.
  • Suspension: Stainless steel cables.
  • Power cable: Silver braided.
  • Drivers: HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming.
  • Remote Mounting Of Drivers: Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.
  • Mechanical: Luminaires attached directly to the J box (by others - North America only).
  • Diffusers: Frosted acrylic.
  • L70 @25oC: > 50,000 hrs.



See specification for more information.
