Downloads : technical modifications reserved

Specificaties Betacalco Micro Ellipse II Susp (pdf)

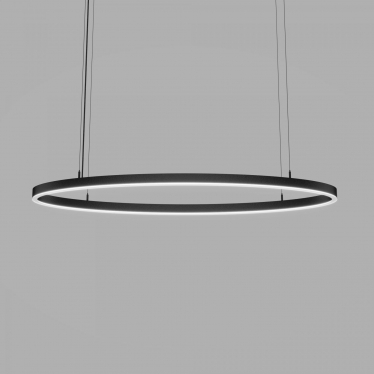

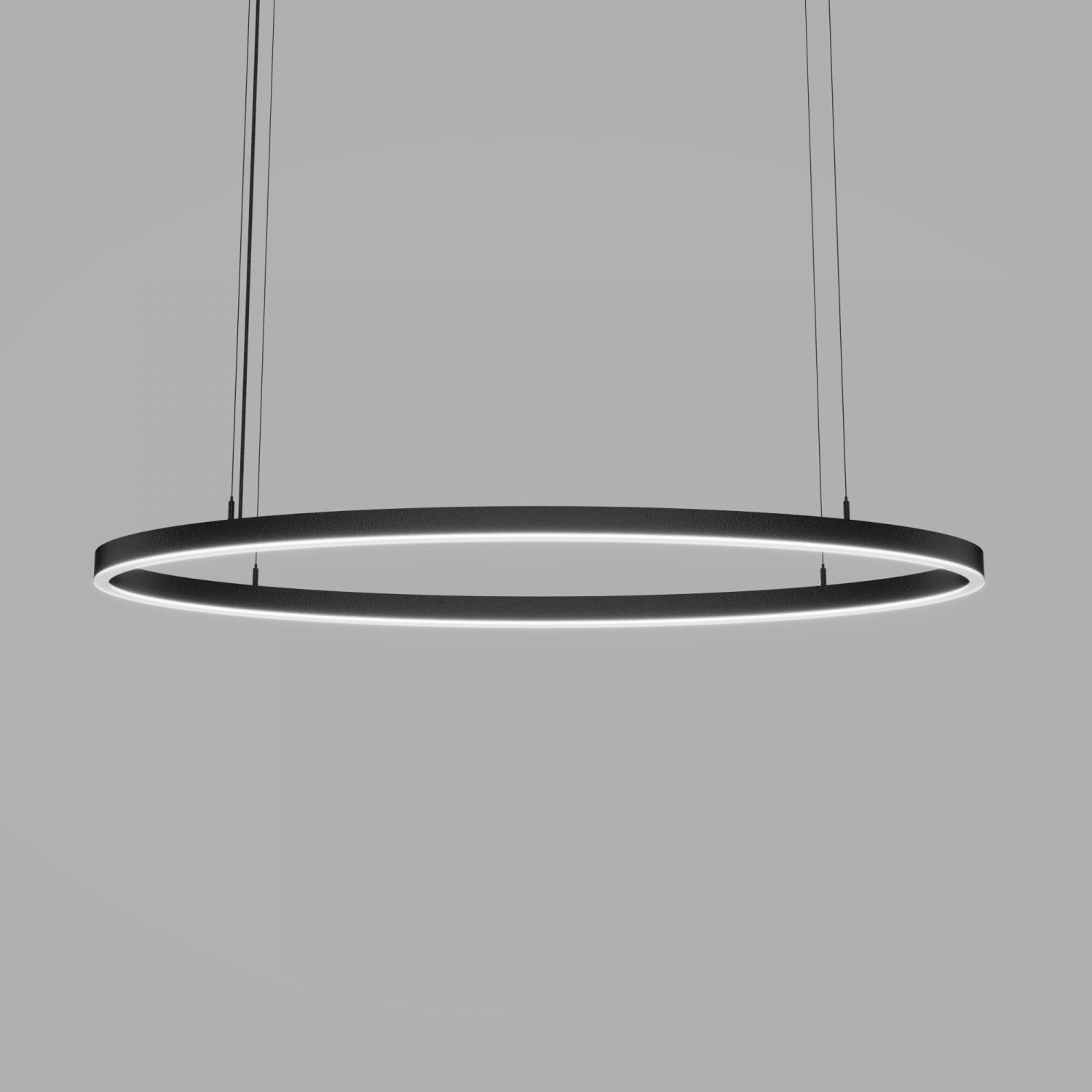

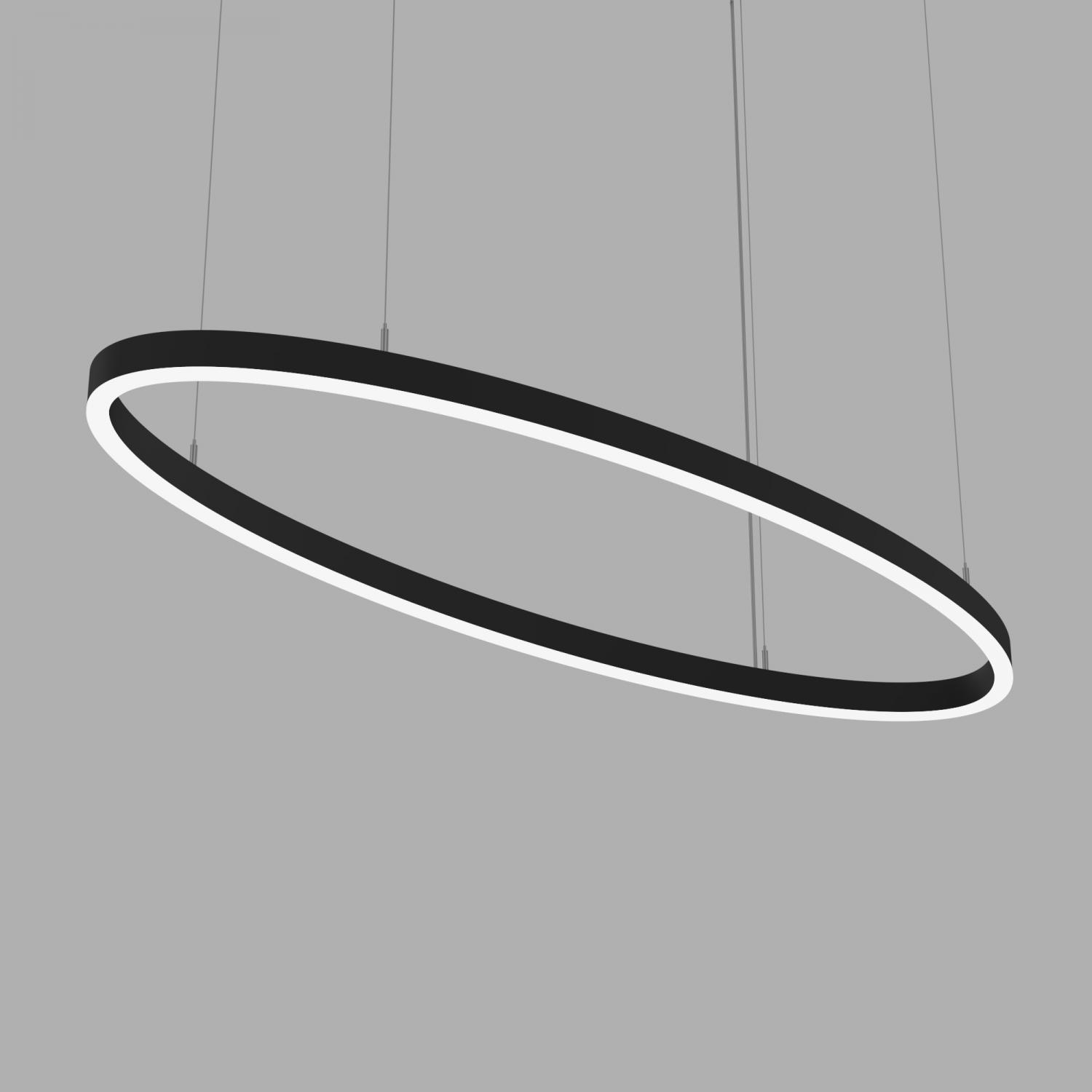

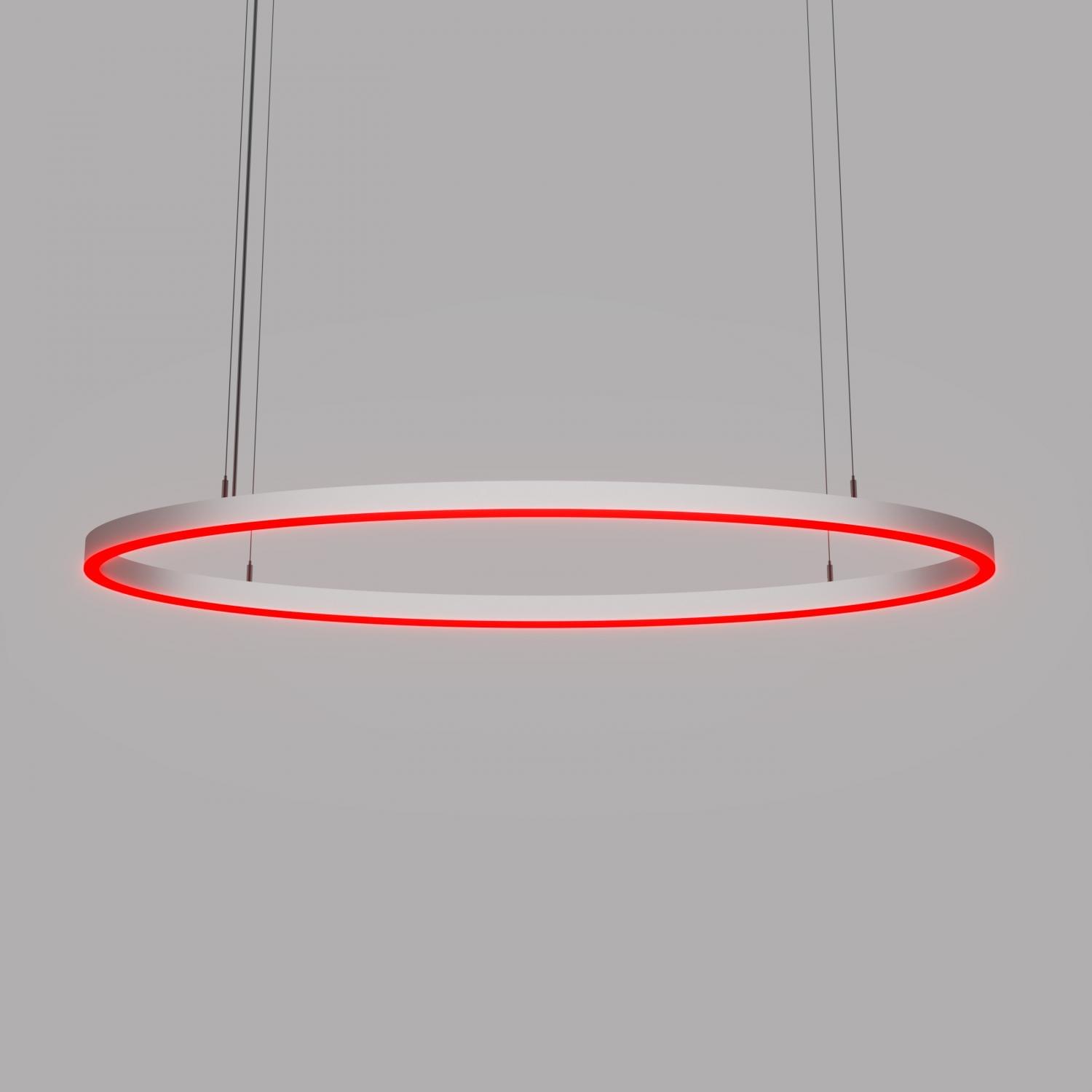

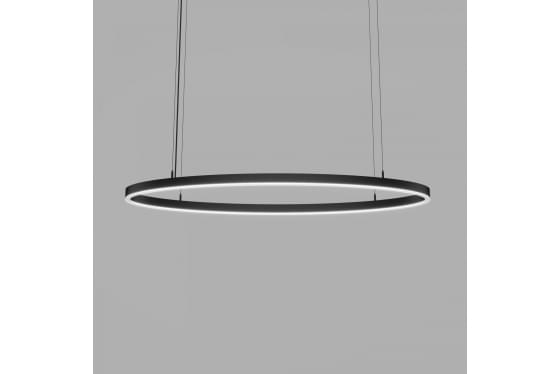

Beta-Calco Micro Ellipse II

  • Body: Aluminum.
  • Finish: Powder coated.
  • Suspension: Stainless steel cables.
  • Power cable: Silver braided.
  • Diffuser: Protruding Lens (2.1mm/0.08").
  • Drivers: HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming.
  • Remote Mounting Of Drivers: Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'.
    Drivers must be accessible after installation.
  • Remote Emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).
  • L70 @25oC: > 50,000 hrs.



See specification for more information.
