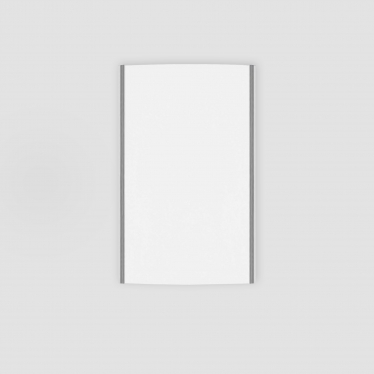

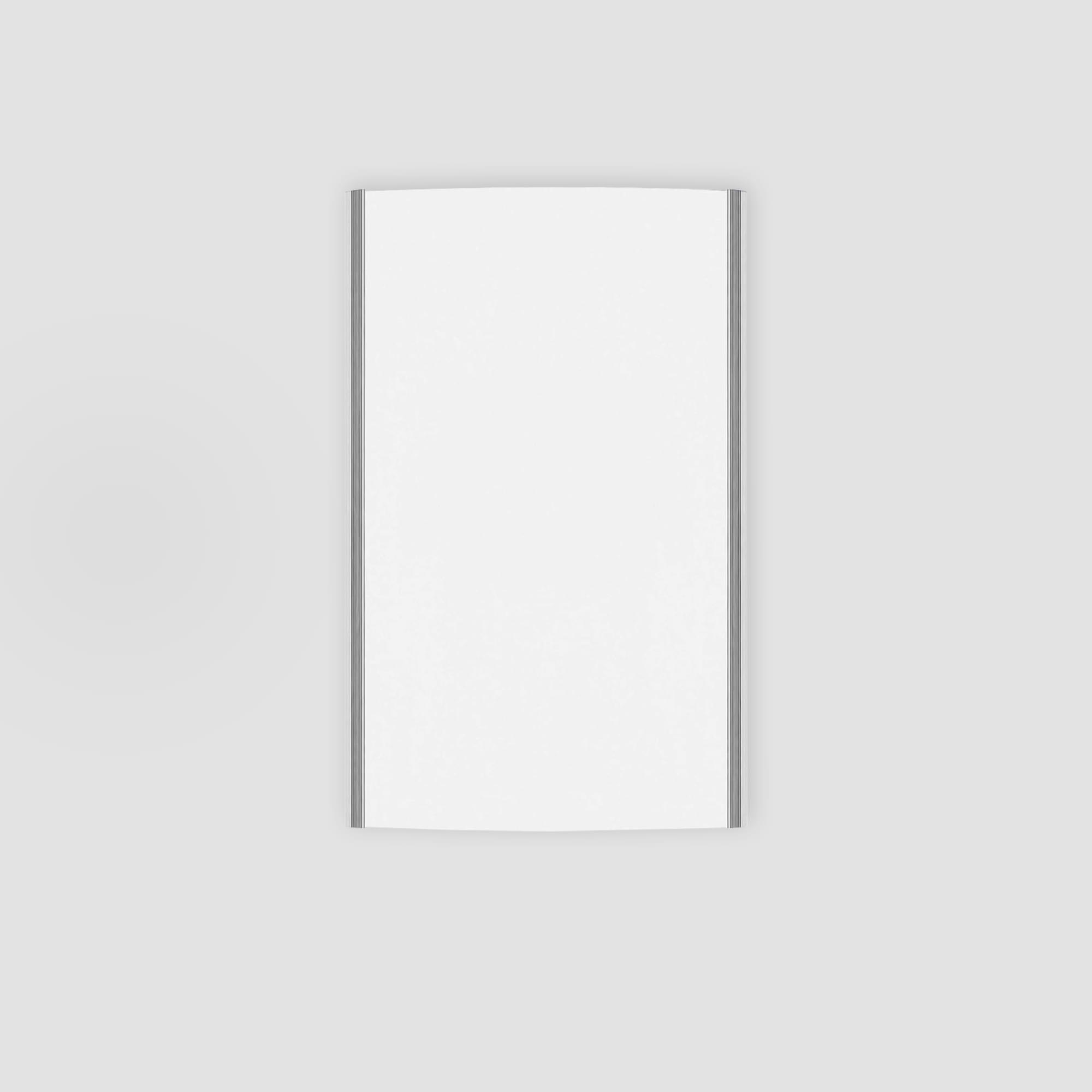

The Lux Company Axalis TL

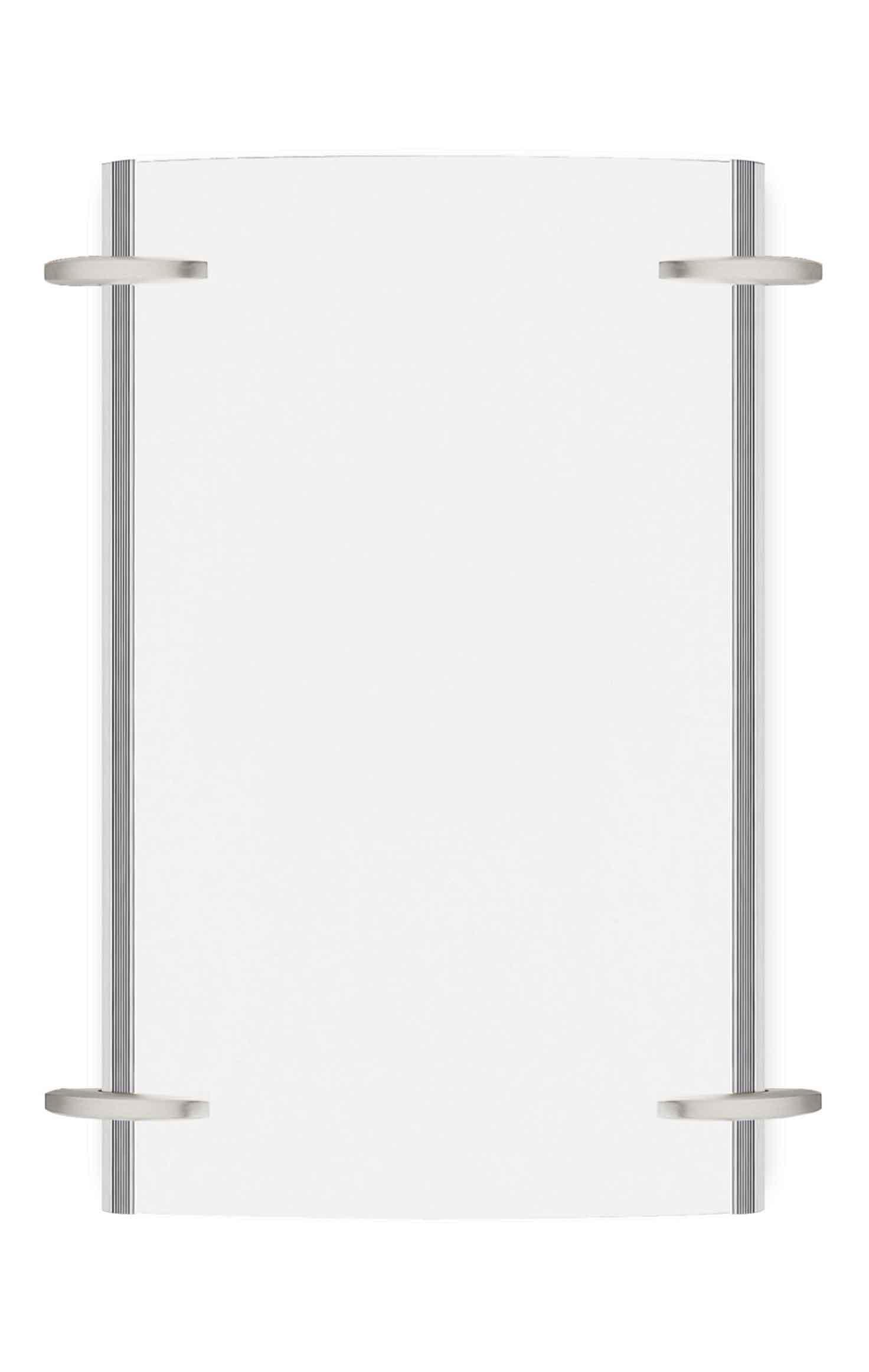

- Body and trim: Steel and extruded aluminum. Trim claws, die cast alloy.
- Finish: Metallic Silver, Black Chrome, Polished Brass, Polished Chrome, Satin Brass
- Diffuser: Opal acrylic.
- Dust covers: Opal Polycarbonate.
- Drivers: HPF, electronic for 120-277V (EU-240V), 0-10V dimming (10%) standard.
- Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).
- CCT: 3000K (min 80 CRI), 3500K (min 80 CRI), 4000K (min 80 CRI)

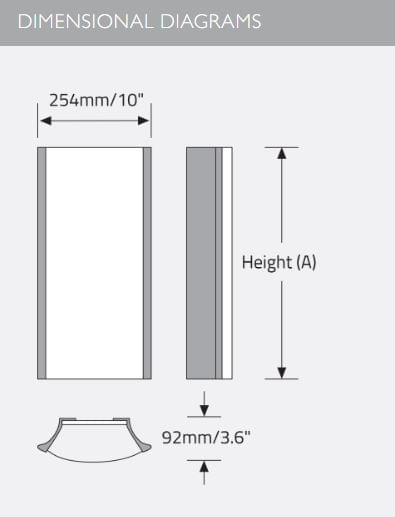

- Power (LED): Delivered lms: Height (A):
- 16W 1244 381mm/15"
- 24W 1877 457mm/18"
- 32W 2462 584mm/23"
See specification for more information.
