The Lux Company Arc12 CD/U5

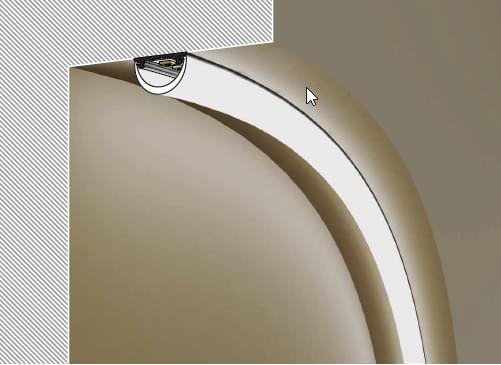

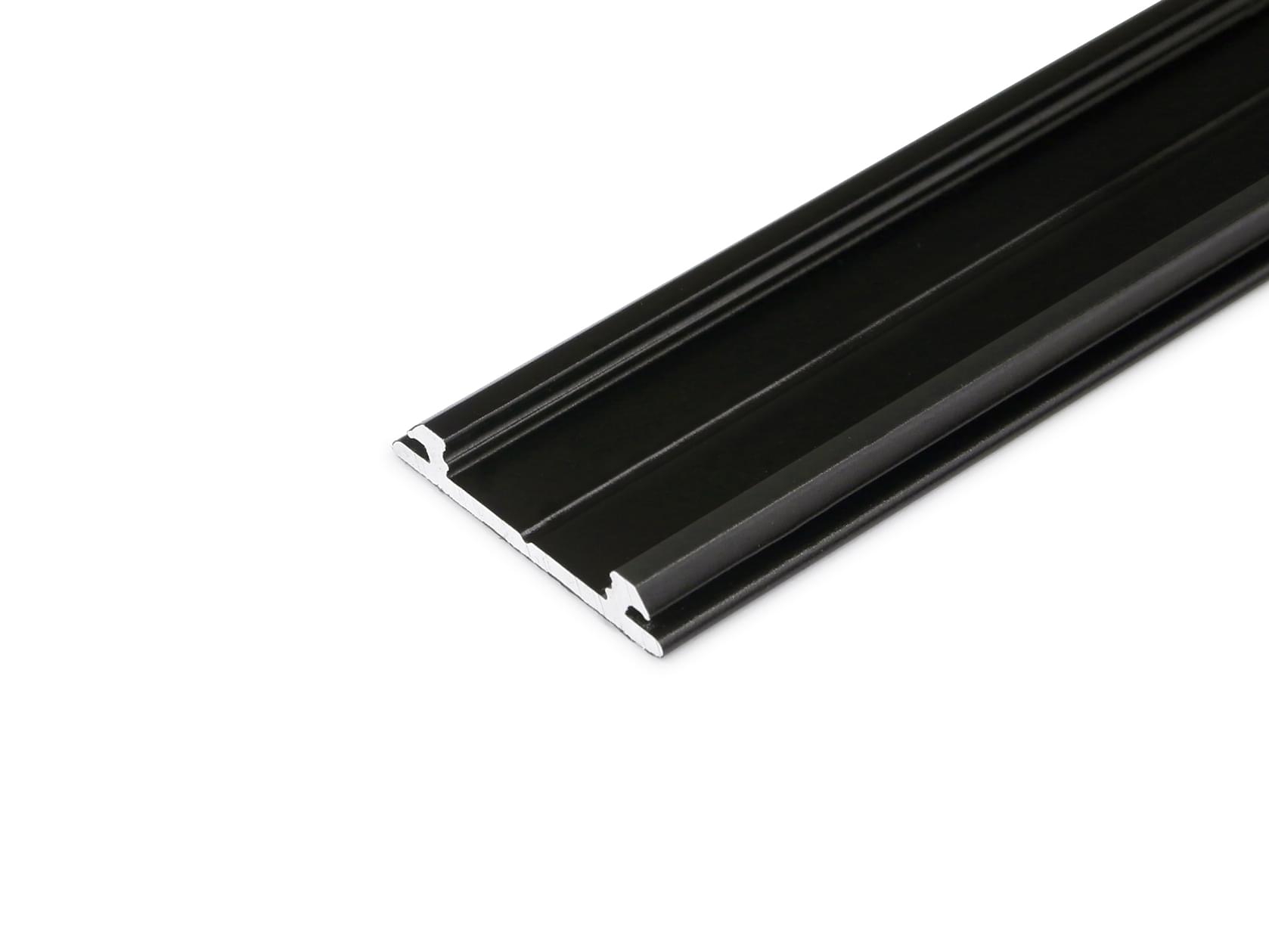

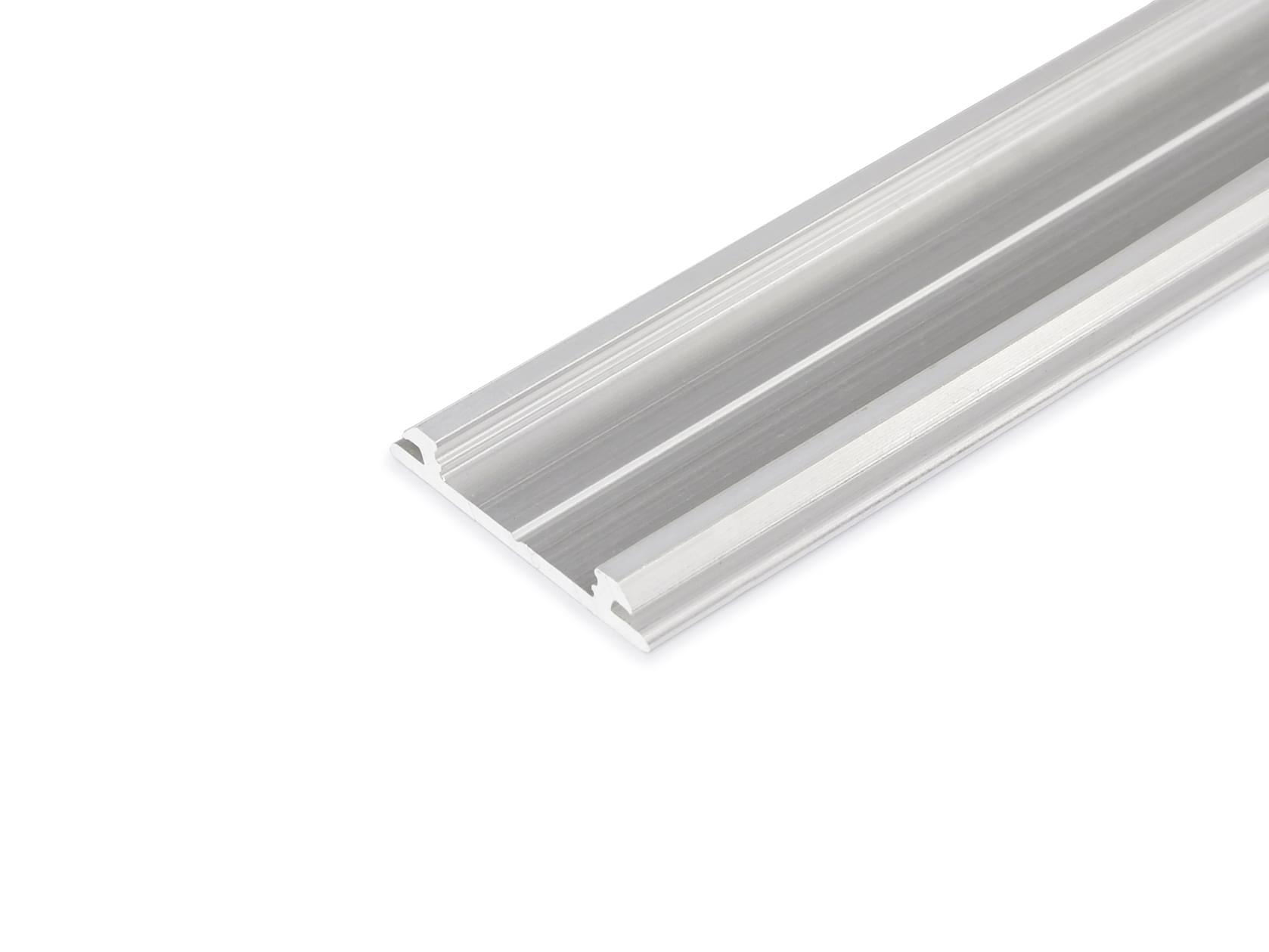

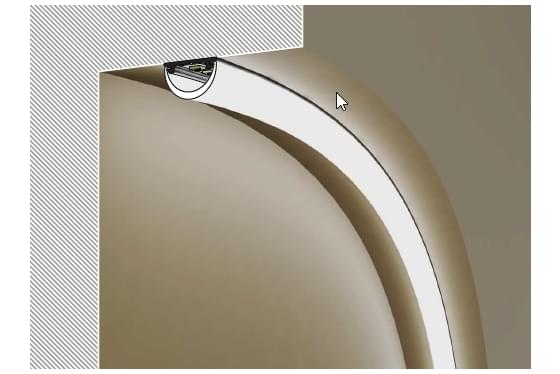

Profile LED ARC12 CD/U5 – Flexible Surface aluminium profile. Mount directly on wall or ceiling. Possibility of bending in two directions. The profile keeps shaped bend. Minimal bending radius 50cm.
Possibility for external use, but please request D cover and use waterproof LED strip.

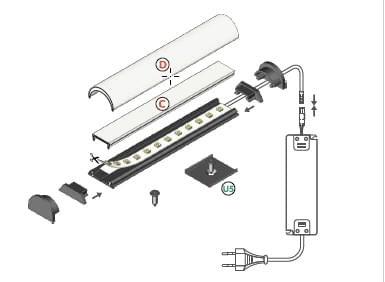

Complete with White click cover, surface curved shape (D) cover available on request. End cap and cover accessories not included, but available on request.

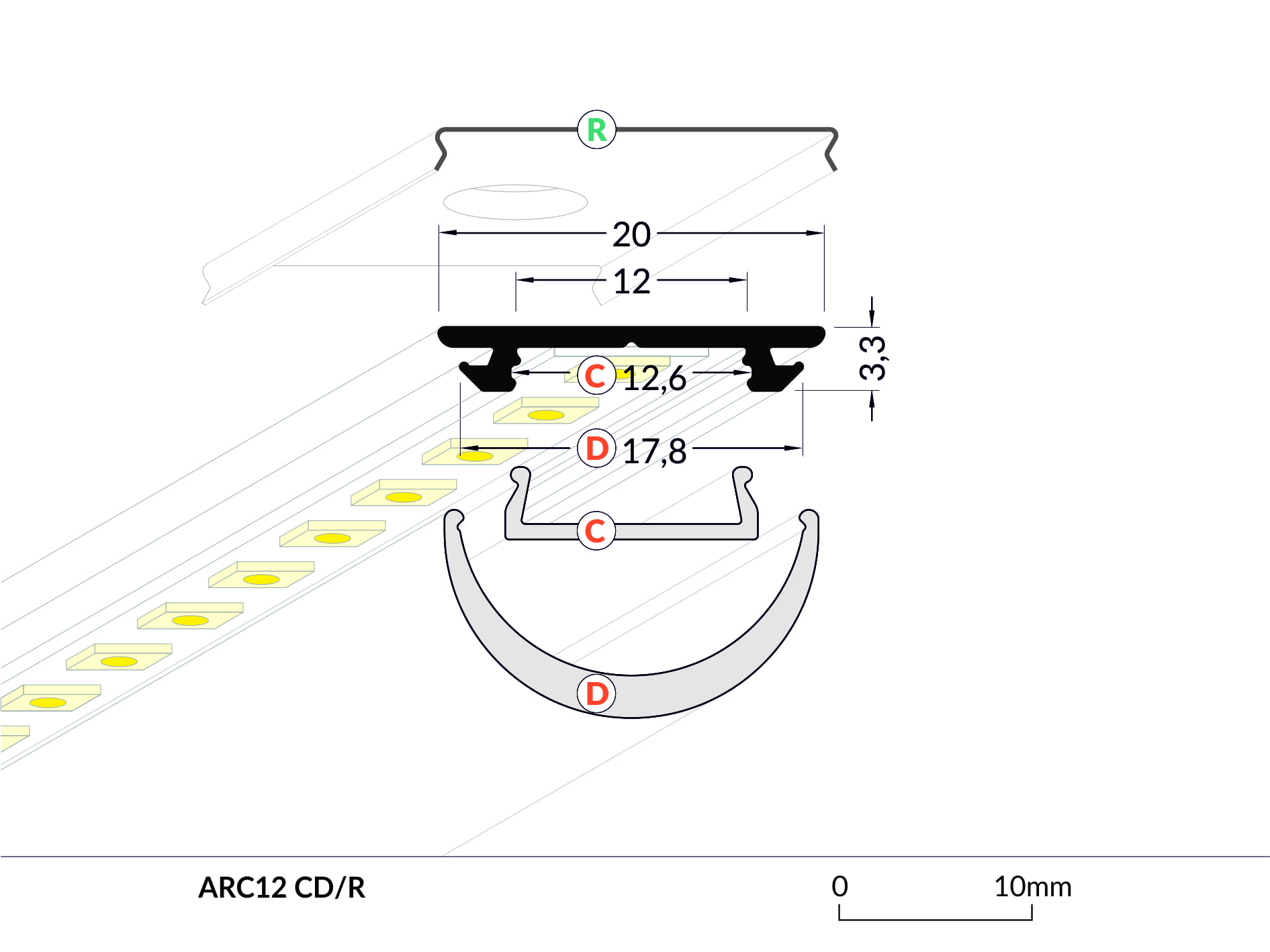

Can be used with LED Strip 12mm width max. By using a high power LED strip this combination can give you luminance which comes close to a fluorescent tube (approx 900 Im/mb). (LED Not included)
Suitable for housing single colour and RGB LED 5050 SMD Strip Lights. Our aluminium profile is a fast fix solution suitable for fixing to almost any surface.
