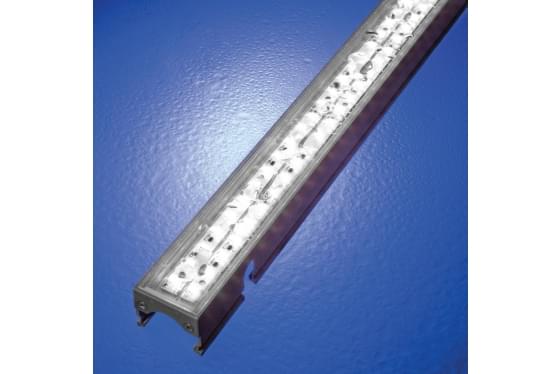

The Radiant Euclid 40 IP65 system has been developed for use in exterior indirect linear lighting applications. The system incorporates DC to DC linear constant current drivers to ensure efficient LED operation and so that long lengths of the system can be run from a single large power supply thus reducing wiring and installation costs.

The Euclid 40 system can provide up to 3,000 lumens per mtr.

The extruded heat sink profile design allows end, side or back power entry. The LED pitch is maintained between the individual luminaires to maintain constant lighting levels without dark areas.

Various LED colour temperature and CRI options available.

Radiant can supply this system in custom lengths based on a 83 mm module. Minimum length 170mm up to a maximum of 2.5 mtrs.

Various mounting options and bracket types are available.

Various dimming options available: 1 - 10, DALI, DMX. Separate dimming channel. Side, back and end power feed options allow continuous lighting without dark areas - LED pitch is maintained between the individual luminaires.

See specification for more information
