Downloads : technical modifications reserved
Specificatie Precision Lighting Stacko Straight Fixed End (pdf) |

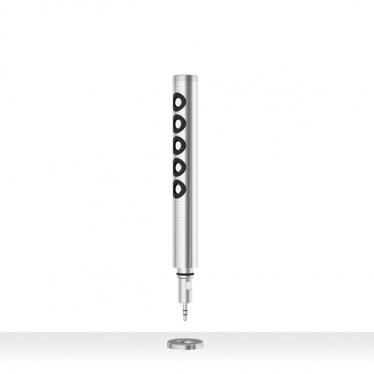

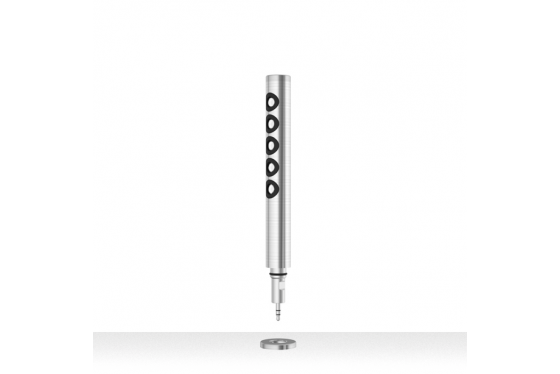

Precision Lighting Stacko Straight Fixed End
Stacko Straight Fixed End is a 5.6W miniature display orientated LED lighting module offering 4 beam distributions that is a part of the modular Stacko Collection which allows users to ‘stack’ lighting modules together to create unique lighting set-ups
It is an ‘End’ Stacko lighting module which means it closes a circuit and does not accept other Stacko lighting modules above it. It has a total of 5 light engines with a combined output of 510lm. Each 102lm light engine produces a Narrow beam with a peak intensity of 794 cd. Stacko Straight Fixed End is infinitely adjustable in 360 degree pan. The luminaire is compatible with our Minipoint system that enables a plug and play setup where luminaires can be simply swapped to suit changing lighting requirements.
- Material: Machined AL 6063-T6 | Machined Brass
- Finish: Brushed Aluminium | White RAL 9010 | Rubbed Bronze | Polished Brass | Satin Brass | Matte Black Anodised
- System: Minipoint
- Lockable: N/A
- System Power: 5.6W
- Gear/PSU/Driver: 1-10V | DALI | External 350mA CC
See specificaion for more information or click here
