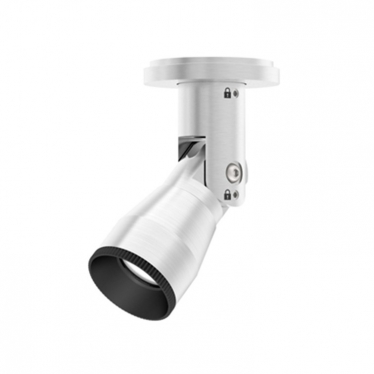

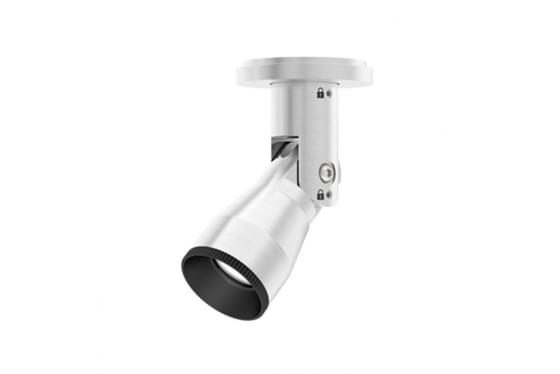

Precision Lighting Pico Plus Surface
Pico Plus Surface is a discreet LED spotlight, based on the minimal aesthetic of the Pico 1 Surface, but with the additional capability of holding accessory lenses. The spotlight comes as standard in white, black and brushed aluminium finishes. Movement is aided by a low friction bearing rotation and constant torque tilt mechanism, lockable in both pan and tilt. The onboard 24V driver ensures overcurrent protection and is not polarity sensitive. Pico Plus Surface is machined from aerospace grade 6063-T6 aluminium, delivering a lumen package of 140lm at 1.6W.
Category | Interior use only IP20 |
Material | Machined Aluminium |
Finish | Brushed Aluminium | Black | White | Custom |
System | Integral Monopoint |
Lockable | Pan & Tilt |
Colour Temperature | 3000K | 2700K |
Gear Type | Dimmable options available |
See specification for more information
