Precision Lighting Minimo Tilt

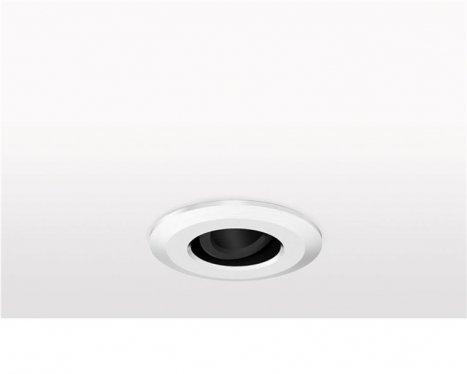

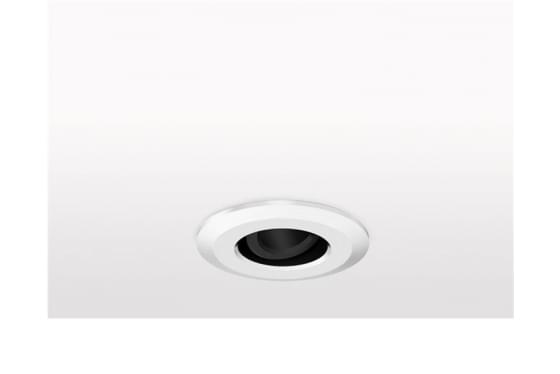

Minimo Tilt is a miniature recessed LED luminaire providing high performance accent lighting from a compact source and offering 25º tilt. Even at full tilt, the luminaire does not protrude from the bezel. With 95CRI, Minimo Tilt is perfect for use in colour-critical applications. Tool-less, site changeable optics allow flexibility in varying environments. Minimo Tilt is machined from aerospace grade 6063-T6 aluminium and brass, is available as standard in white, black, polished brass, rubbed bronze and brushed aluminium finishes, and delivers a lumen package of 140lm at 1.6W.
Category | Interior use only IP20 |
Material | Machined Aluminium | Machined Brass |
Finish | Aluminium | Rubbed Bronze | Polished Brass |
| Black | White | Custom | |
Cutout | ø44mm |
Ceiling Thickness | 5 - 25mm |
Optic | 12º |
Colour Temperature | 3000K | 2700K | * |
Gear Type | Dimmable options available |
