Downloads : technical modifications reserved
specificatie precision lighting minimo fixed trimless deep recess (pdf) |
instructions precision lighting minimo fixed trimless (pdf) |

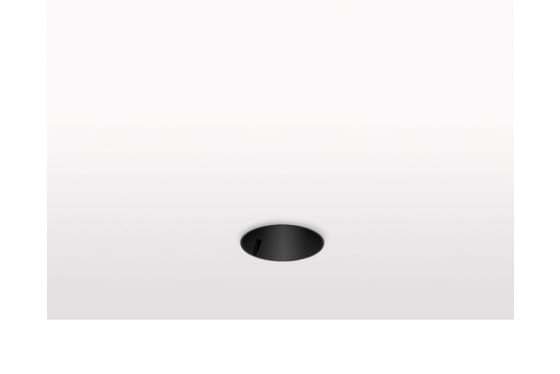

Precision Lighting Minimo Fixed Trimless Deep Recess
Minimo Fixed Trimless is a miniature recessed LED luminaire providing high performance accent lighting from a compact source with minimal glare. With 95CRI, Minimo Fixed is perfect for use in colour-critical applications. With an aperture of just ø24mm, Minimo Fixed Trimless is the most discreet fixture in the Precision Lighting range. Tool-less, site changeable optics allow flexibility in varying environments. Minimo Fixed Trimless is machined from aerospace grade 6063-T6 aluminium, delivering a lumen package of 140lm at 1.6W.
Category | Interior use only IP20 |
Material | Machined Aluminium |
Trim | Plaster-in Trimless |
Cutout | ø33mm |
Ceiling Thickness | 5 - 25mm |
Optic | 12º |
Gear Type | Dimmable options available |
Click here for Precision Lighting Minimo Fixed Trimless
See specification for more information or click here
