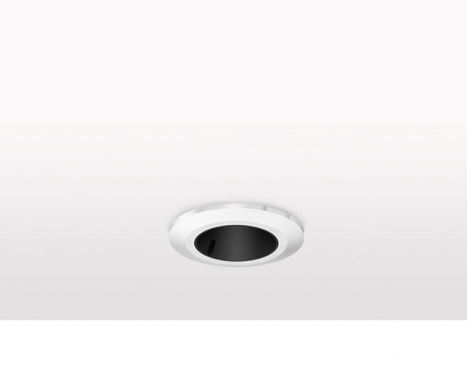

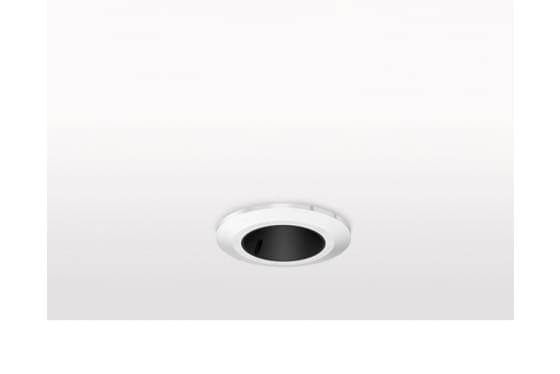

Precision Lighting Minimo Fixed Circular Deep Recess
Minimo Fixed Circular is a miniature recessed LED luminaire providing high performance accent lighting from a compact source with minimal glare.
With 95CRI, Minimo Fixed is perfect for use in colour-critical applications. Site-changeable optics allow flexibility in varying environments.
Minimo Fixed is machined from aerospace grade 6063-T6 aluminium or brass, and is available as standard in white, black, polished brass, rubbed bronze and brushed aluminium finishes, and delivers a lumen package of 140lm at 1.6W.
Category | Interior use only IP20 |
Material | Machined Aluminium | Machined Brass |
Finish | Aluminium | Rubbed Bronze | Polished Brass |
| Black | White | Custom | |
Cutout | ø33mm |
Ceiling Thickness | 3 - 25mm |
Optic | 12º |
Gear Type | Dimmable options available |
See specification for more information or click here
