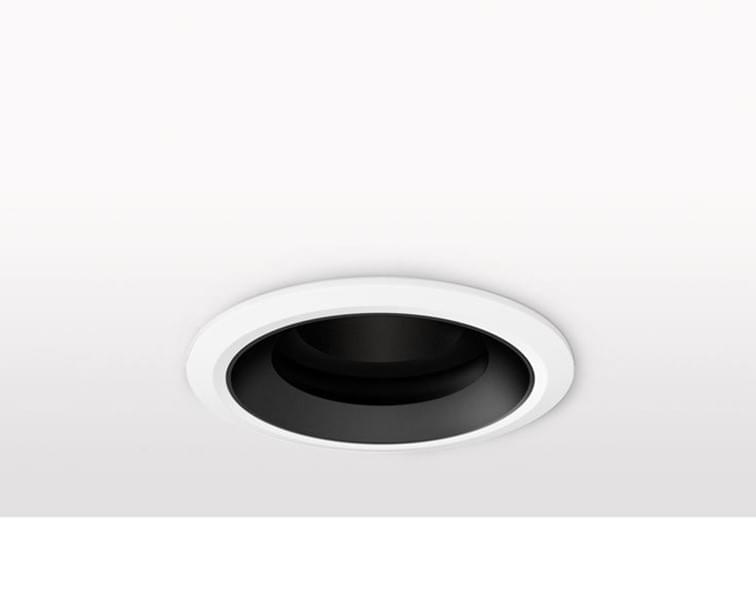

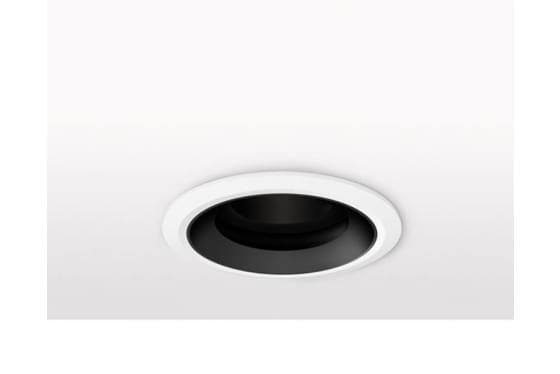

Precision Lighting Minimo 16 Fixed

Minimo 16 Fixed is a recessed LED luminaire providing high performance accent lighting from a compact source with minimal glare. Minimo 16 is perfect for use in colour-critical applications with 92CRI delivered from a single source LED module and available in two colour temperatures as standard. Tool-less, site changeable beam angles allow flexibility in varying environments. Machined from aerospace grade 6063-T6 aluminium or brass, Minimo 16 Fixed features a chamfered bezel with a choice of six finishes and an interchangeable chamfered aperture available in three finishes for complete aesthetic integration. Minimo 16 Fixed delivers a lumen package of 665lm at 8.4W.


Category Interior use only IP20
Material Machined Aluminium | Brass
ConfigurationChamfered Aperture
Gear TypeDimmable Options Available
Bezel FinishesAluminium | Black | White | Rubbed Bronze
| Polished Brass | Chrome |
Aperture Finishes Black | White | Satin Brass |
Colour Temperature2700K | 3000K

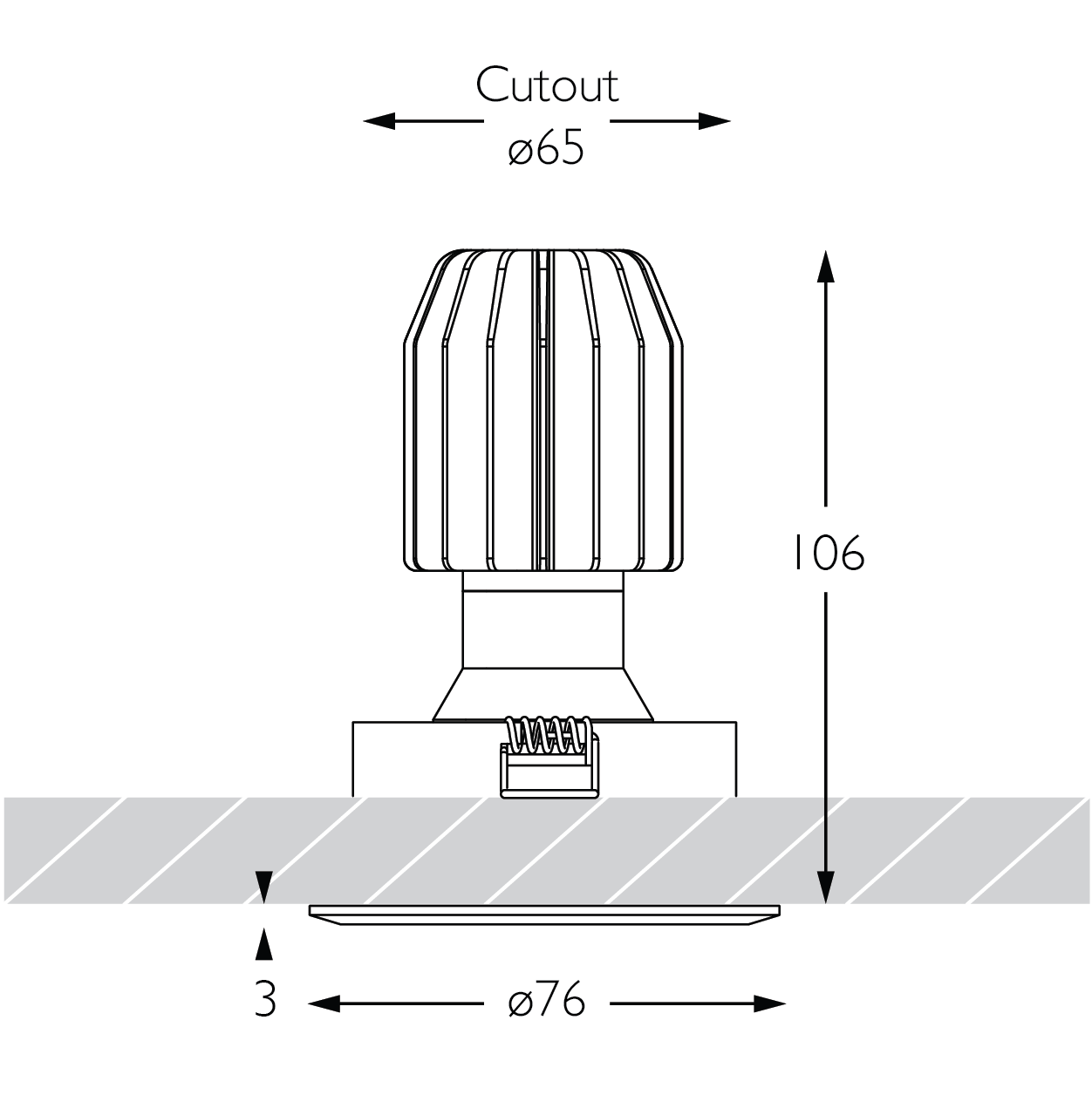

Cutoutø65mm



See specification for more information or click here
