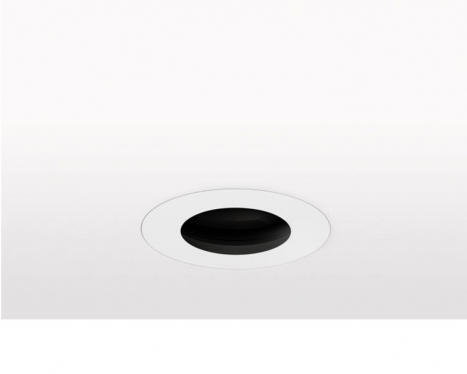

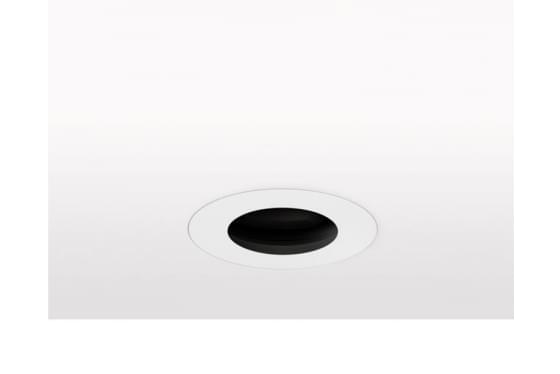

Precision Lighting Minimo 16 Adjustable Trimless Pinhole
Minimo 16 Adjustable is a compact recessed LED luminaire offering full adjustability with 360º pan and 35º tilt without breaking the ceiling line. Minimo 16 is perfect for use in colour-critical applications with 92CRI delivered from a single source LED module and available in two colour temperatures as standard. Tool-less, site changeable beam angles allow flexibility in varying environments. Machined from aerospace grade 6063-T6 aluminium, Minimo 16 Adjustable Trimless features a 33mm pinhole aperture for a minimal and extremely low glare solution. Minimo 16 Adjustable delivers a lumen package of 665lm at 8.4W.
Category | Interior use only IP20 |
Material | Machined Aluminium |
Configuration | Trimless | Pinhole Aperture |
Finishes | Black | White |
Colour Temperature | 2700K | 3000K |
Gear Type | Dimmable Options Available |
Cutout | ø76mm |
See specification for more information or click here
