Downloads : technical modifications reserved

specificatie precision lighting minimo 16 adjustable (pdf)

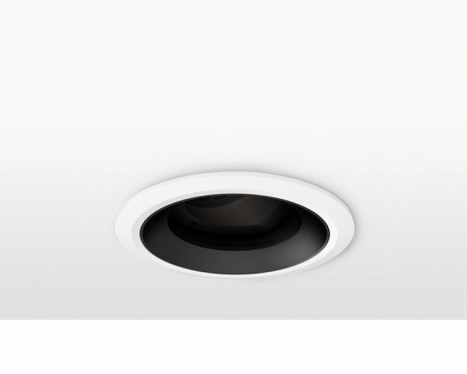

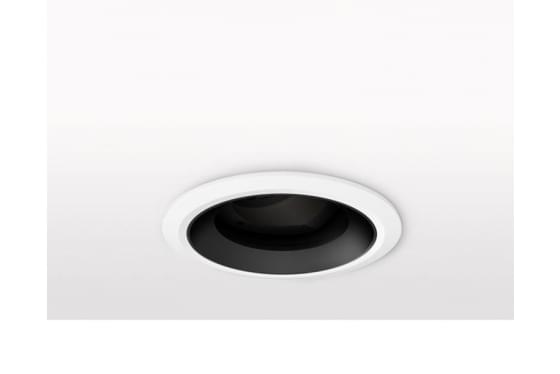

Precision Lighting Minimo 16 Adjustable

Minimo 16 Adjustable is a compact recessed LED luminaire offering full adjustability with 360º pan and 35º tilt without breaking the ceiling line. Minimo 16 is perfect for use in colour-critical applications with 92CRI delivered from a single source LED module and available in two colour temperatures as standard. Tool-less, site changeable beam angles allow flexibility in varying environments. Machined from aerospace grade 6063-T6 aluminium or brass, Minimo 16 Adjustable features a chamfered bezel with a choice of six finishes and an interchangeable decorative aperture available in three finishes for complete aesthetic integration. Minimo 16 Adjustable delivers a lumen package of 665lm at 8.4W.



Category Interior use only IP20
Material Machined Aluminium | Brass
Configuration Chamfered Aperture
Cutout ø65mm
Bezel FinishesAluminium | Black | White | Rubbed Bronze
Polished Brass | Chrome
Aperture FinishesBlack | White | Satin Brass
Colour Temperature2700K | 3000K
Gear TypeDimmable Options Available



See specification for more information or click here
