Downloads : technical modifications reserved
specificatie precision lighting minimo 11 fixed trimless pinhole (pdf) |

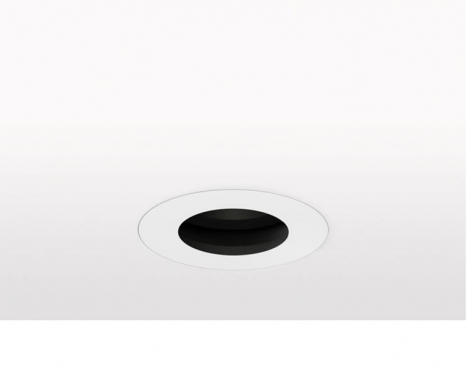

Precision Lighting Minimo 11 Fixed Trimless Pinhole
Minimo 11 Fixed is a recessed LED luminaire providing high performance accent lighting from a compact source with minimal glare. Minimo 11 is perfect for use in colour-critical applications with 92CRI delivered from a single source LED module and available in two colour temperatures as standard. Tool-less, site changeable beam angles allow flexibility in varying environments. Machined from 6063-T6 aluminium, Minimo 11 Fixed Trimless features a 33mm pinhole aperture for a minimal and extremely low glare solution. Minimo 11 Fixed delivers a lumen package of 513lm at 6W.
Category | IP Rate |
Material | Machined AL 6063-T6 |
Finish | Black | White | Custom RAL |
Cutout | ø65 |
Gear Type | 500mA CC | 1-10V | DALI |
Colour Temperature | 2700K | 3000K |
Optics FWHM | 9 | 11 | 15 | 25 | 45 |
See specification for more information or click here
