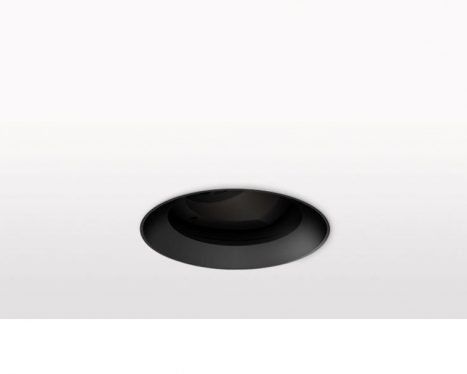

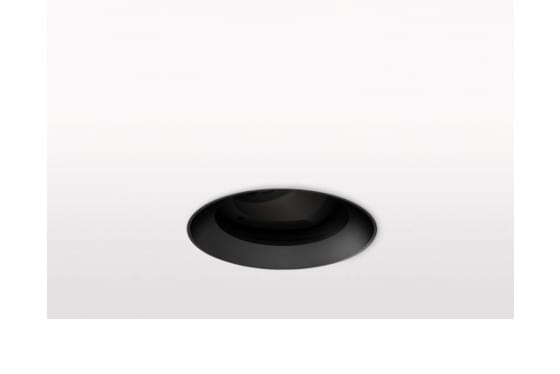

Precision Lighting Minimo 11 Adjustable Trimless
Minimo 11 Adjustable is a compact recessed LED luminaire offering full adjustability with 360º pan and 35º tilt without breaking the ceiling line. Minimo 11 is perfect for use in colour-critical applications with 92CRI delivered from a single source LED module and available in two colour temperatures as standard. Tool-less, site changeable beam angles allow flexibility in varying environments. Machined from aerospace grade 6063-T6 aluminium, Minimo 11 Adjustable Trimless offers a very discreet appearance and an interchangeable chamfered insert available with a choice of three finishes for complete architectural integration. Minimo 11 Adjustable delivers a lumen package of 513lm at 6W.
Category | Interior use only IP20 |
Material | Machined Aluminium |
Configuration | Trimless | Chamfered Aperture |
Gear Type | Dimmable Options Available |
Aperture | Finishes Black | White | Satin Brass | |
Colour Temperature | 2700K | 3000K |
Cutout | ø76mm |
See specification for more information or click here
