Precision Lighting Minimo 11 Adjustable

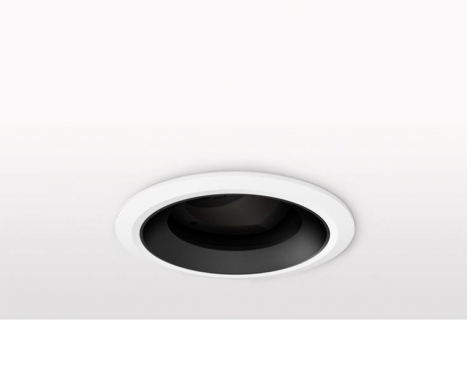

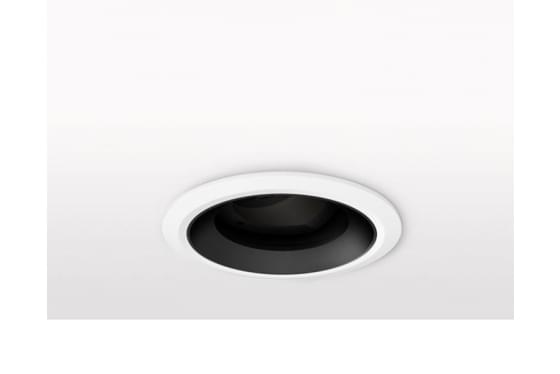

Minimo 11 Adjustable is a compact recessed LED luminaire offering full adjustability with 360º pan and 35º tilt without breaking the ceiling line.  Minimo 11 is perfect for use in colour-critical applications with 92CRI delivered from a single source LED module and available in two colour temperatures as standard. Tool-less, site changeable beam angles allow flexibility in varying environments. Machined from aerospace grade 6063-T6 aluminium or brass, Minimo 11 Adjustable features a chamfered bezel with a choice of six finishes and an interchangeable decorative aperture available in three finishes for complete aesthetic integration. Minimo 11 Adjustable delivers a lumen package of 513lm at 6W.


Category Interior use only IP20
Material Machined Aluminium | Brass
Colour Temperature2700K | 3000K
Gear Type Dimmable Options Available
Bezel FinishesAluminium | Black | White | Rubbed Bronze
Polished Brass | Chrome |
Aperture FinishesBlack | White | Satin Brass |
Cutoutø65mm



See specification for more information or click here
