Precision Lighting Domino 4 Surface

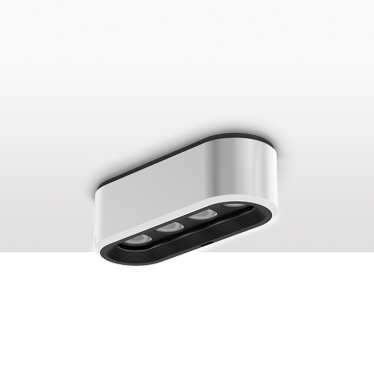

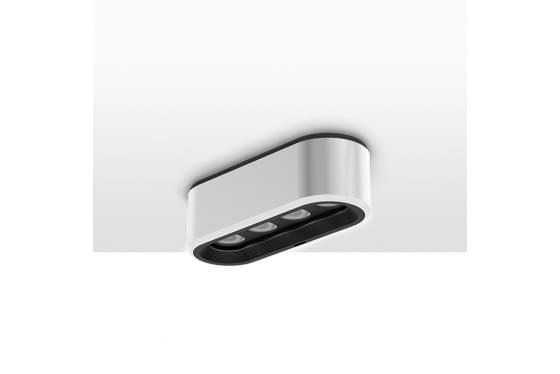

Domino 4 Surface is a low profile, surface-mounted 95CRI architectural luminaire. The minimal aesthetic, common across the Precision portfolio, ensures the luminaire blends into its architectural surroundings. The luminaire comes as standard in white, black and brushed aluminium finishes, with four light sources. Each light source can be configured separately with one of five changeable optics, facilitating a large number of distribution choices. The built-in magnetic accessory holder enables glare control and accommodates accessories up to 2mm thick. Domino 4 Surface is machined from aerospace grade 6063-T6 aluminium, delivering a lumen package of 712lm at 8.8W.



Category Interior use only IP20
MaterialMachined Aluminium
Finish Brushed Aluminium | Black | White | Custom
Cutoutø17mm
Min. Ceiling Thickness 5mm
AccessoriesLenses
Colour Temperature3000K*
Optics 12º
Gear TypeDimmable options available



Click here for Precision Lighting Domini 1 Surface

Click here for Precision Lighting Domini 2 Surface



See specification for more information
