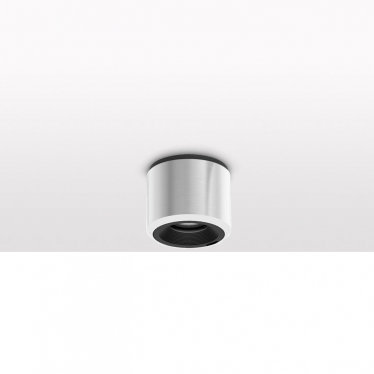

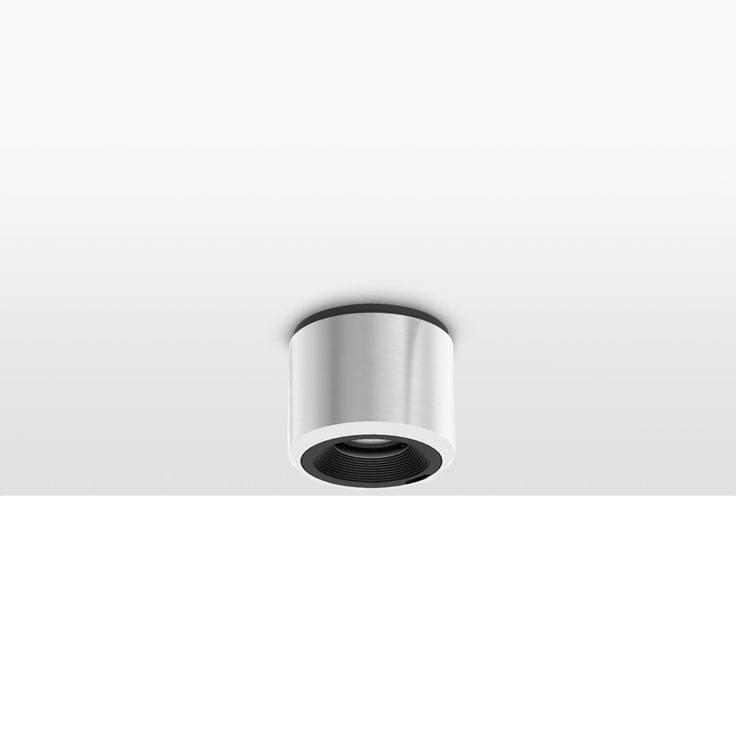

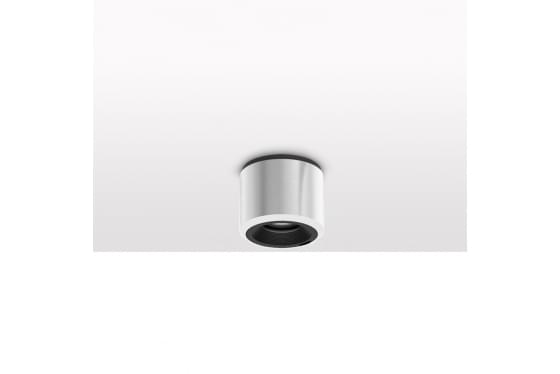

Precision Lighting Domino 1 Surface

Domino 1 Surface is a low profile, surface-mounted 95CRI architectural luminaire. The minimal aesthetic, common across the Precision portfolio, ensures the luminaire blends into its architectural surroundings. The luminaire comes as standard in white, black and brushed aluminium finishes, and has five changeable optics for flexible distribution. The built-in, anti-reflective, magnetic accessory holder enables glare control and accommodates accessories up to 2mm thick. Domino 1 Surface is machined from aerospace grade 6063-T6 aluminium, delivering a lumen package of 178lm at 2.2W.



CategoryInterior use only IP20
MaterialMachined Aluminium
FinishBrushed Aluminium | Black | White | Custom

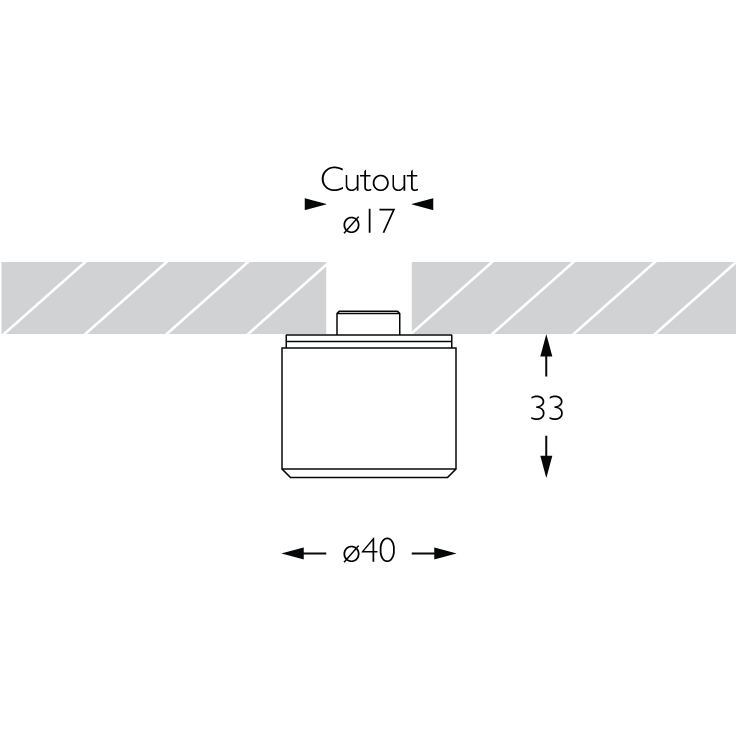

Cutoutø17mm
Min. Ceiling Thickness5mm
Optics12º
Colour Temperature3000K*
Gear TypeDimmable options available



Click here for Precision Lighting Domino 2 Surface

Click here for Precision Lighting Domino 4 Surface



See specification for more information
