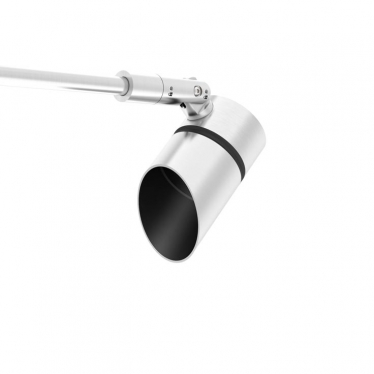

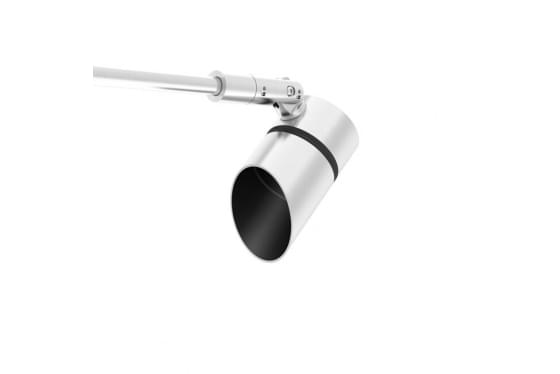

Precision Lighting Discus S11 Glare Guard
Discus S11 is a compact 95CRI LED spotlight, mounted to a 600mm stem. The spotlight comes as standard in white, black and brushed aluminium finishes, and has three site changeable optics for flexible distribution. Movement is aided with a low friction bearing rotation and constant torque tilt mechanism, both lockable in pan and tilt. The Precision Lighting Jack Plug system enables the luminaire to be easily disconnected and reconnected to all of Precision Lighting’s systems, offering flexibility throughout the product’s lifetime. The onboard 24V driver ensures overcurrent protection and is not polarity sensitive. Discus S11 is machined from Aerospace grade 6063-T6 aluminium, delivering a lumen package of 305lm at 3.6W.
Category | Interior use only IP20 |
Material | Machined Aluminium |
Finish | Brushed Aluminium | Black | White | Custom |
Accessories | Snoots | Louvres | Lenses |
Colour Temperature | 3000K | 2700K | * |
Gear Type | Dimmable options available |
See specification for more information or click here
