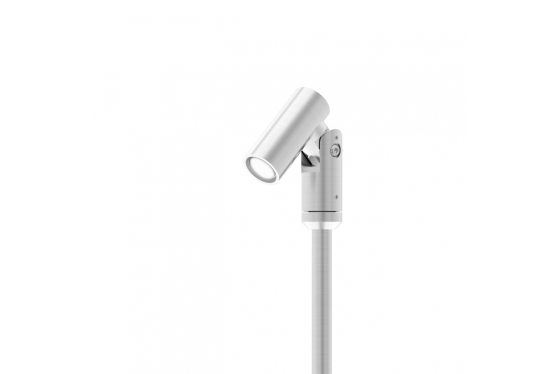

Precision Lighting Atto S Jack
Atto S Jack is a miniature, display orientated LED spotlight that comes as standard in white, black and brushed aluminium finishes. It has four site changeable optics for flexible distribution. The narrow spot beam in our 1.1W 102lm module has a peak intensity of 794cd. There is a 360 degree bearing aided rotation and 180 degree constant torque tilt mechanism, both lockable. The luminaire is compatible with our Minipoint system that enables a plug and play setup where luminaires can be simply swapped to suit changing lighting requirements.
- Material: Machined AL 6063-T6 | Machined Brass
- Finish: Brushed Aluminium | White RAL 9010 | Rubbed Bronze | Polished Brass | Satin Brass | Matte Black Anodised
- System: Minipoint
- Lockable: Pan & Tilt
- Accessories: Snoots
- System Power: 1.1W
- Gear/PSU/Driver: 1-10V | DALI | External 350mA CC
See specifions for more information or click here
