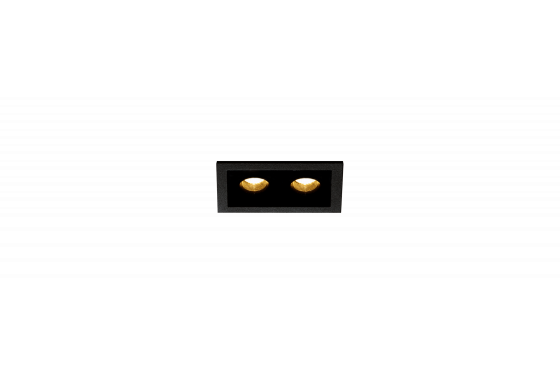

Lucent Lighting Line Flare 2LED Trim/ trimless

Line Flare 2LED Trimless: Two LED trimless downlight with low-glare flare apertures and separate plaster-kit for plaster ceilings. Available in black and white fine texture finish. Also available with cube aperture.

  • Overall Dimension: 53 x 30mm
  • Overall Height: 50mm
  • Required Depth: 75mm MIN
  • Ceiling Cut Out: 35 x 59mm
  • Ceiling Thickness: 25mm MAX
  • Ingress Protection: IP20
  • First Fix Requirement: Yes

Line Flare 2LED Trim: Two LED trimmed downlight with low-glare flare aperture. Available in black and white fine texture finish. Also available with cube aperture.

  • Overall Dimension: 65 x 41mm
  • Overall Height: 50mm
  • Required Depth: 75mm MIN
  • Ceiling Cut Out: 59 x 35mm
  • Ceiling Thickness: 25mm MAX
  • Ingress Protection: IP20



See specification for more information
