Downloads : technical modifications reserved
| specificationlinecubetrim (pdf) |
| specificationlinecubetrimless (pdf) |

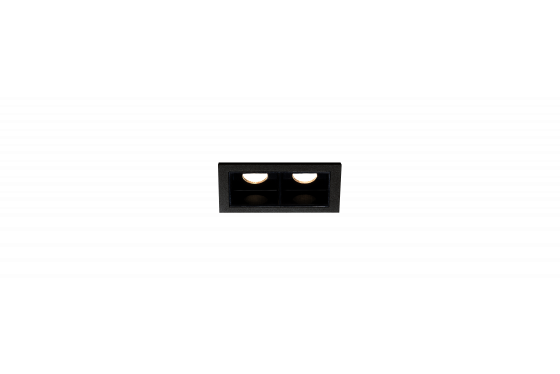

Lucent Lighting Line Cube 2LED
Two LED trimless downlight with low-glare cube apertures and separate plaster-kit for plaster ceilings. Available in black and white fine texture finish.
Also available with flare apertures.
Line Cube Trim
| Overall Dimension | 65 x 41mm |
| Overall Height | 45 mm |
| Required Depth | 75 mm MIN |
| Ceiling Cut Out | 59 x 35mm |
| Ceiling Thickness | 25 mm MAX |
| First Fix Requirement | IP20 |
Line Cube Trimless
| Overall Dimension | 53 x 30mm |
| Overall Height | 50 mm |
| Required Depth | 75 mm MIN |
| Ceiling Cut Out | 59 x 35 |
| Ceiling Thickness | 25 mm MAX |
| Ingress Protection | IP20 |
| First Fix Requirement | Yes |
See specification for more information.
