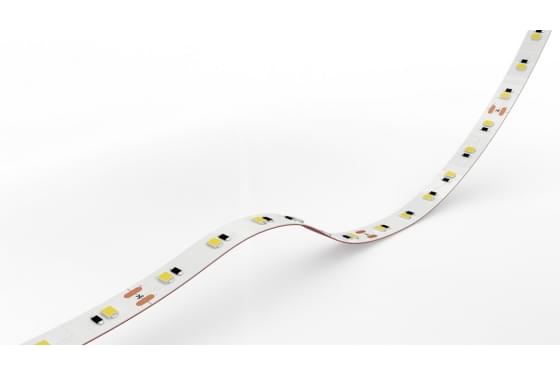

LED Flex Lumen Line 60
The Lumen Line range provides an outstanding light output due to its innovative design. This range offers a high CRI that creates an accurate and vivid colour portrayal. Lumen Line is available in a wide range of colour temperatures that allows our customers to select the right white light output to match their desired ambience and function.
Flexible LED strip lights are used all over the world in various industrial, commercial and residential projects. LED strip lighting is popular among many Architects and Lighting Designers due to the improvements in efficiency, color options and brightness.
Cutting LED strips is very simple thanks to the cut lines along the strips. At each cut point there is a black line with copper solder pads that sit on each side. The copper solder pads make it so each strip piece is addressable even after being cut. This makes it possible to connect LED strips together or connect the strip in a different area of your home.
Product specification:
- Dimension: L5000/W10mm
- Power connection and cut point every 100mm
- Beam angle: 120°
- Colours: White
| CRI | Power consumption | Luminous flux lm/m | Luminaire efficacy lm/w | |
| 60 - 2100K | 97.1 | 13.33W | 754.4 | 56.59 |
| 60 - 2300K | 97.5 | 13W | 736.6 | 56.66 |
| 60 - 2700K | 97.6 | 13.82W | 970.85 | 70.25 |
| 60 - 3000K | 96.8 | 14.19W | 991.54 | 69.88 |
| 60 - 4000K | 95.3 | 13.98W | 1053 | 75.32 |
| 60 - 6000K | 90.0 | 14.23W | 1076.2 | 75.63 |
See specification for more information
