Downloads : technical modifications reserved

Specificatie LAM32 line1 (pdf)

LAM32 Line

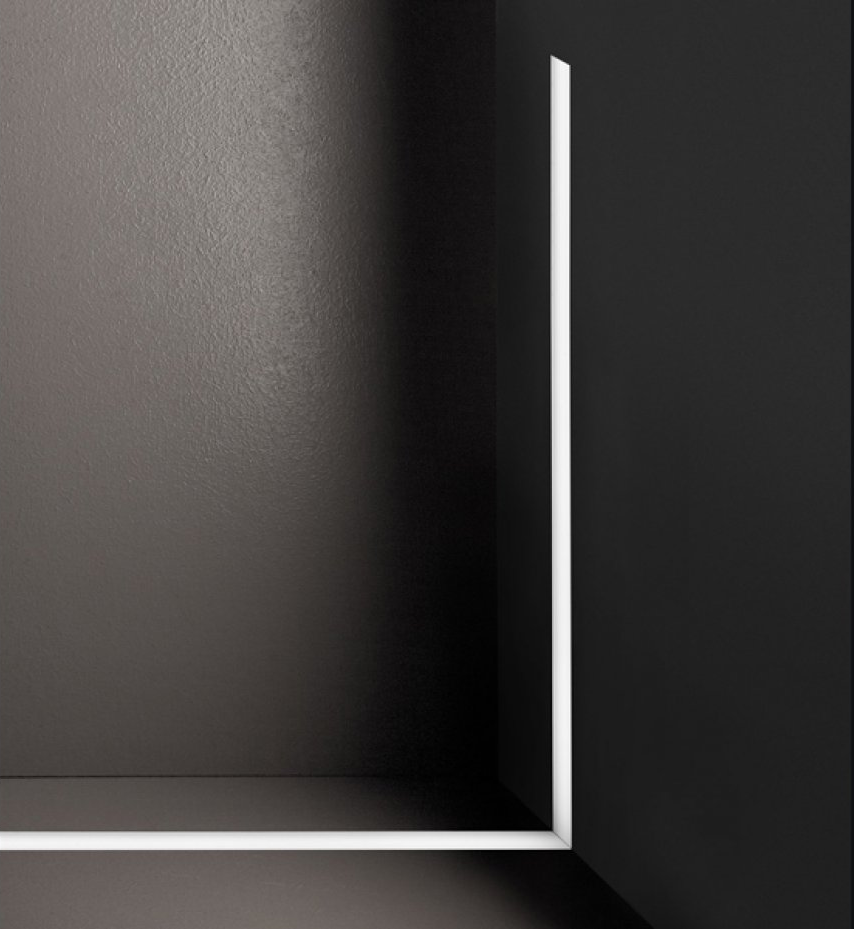

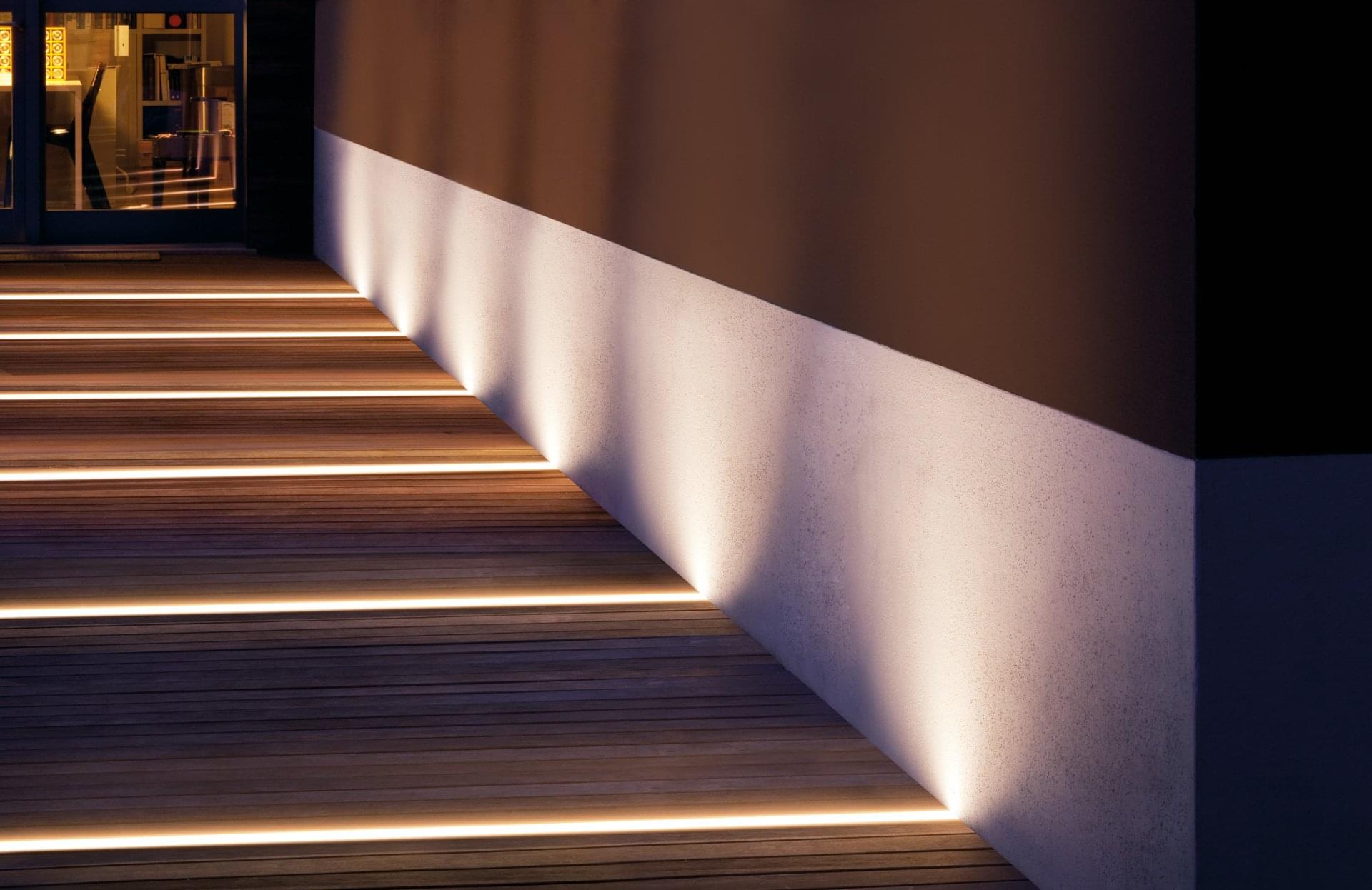

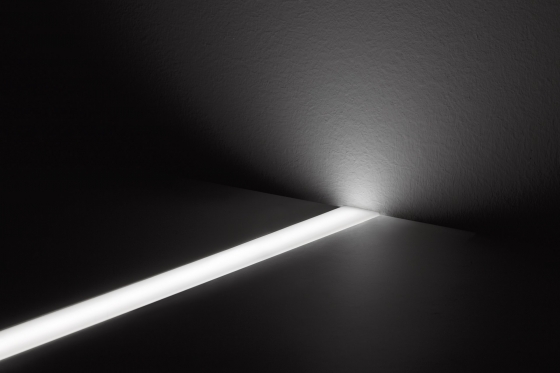

Line is light which cuts through the darkness, effect that *creates a suggestion; is object suitable to be recessed: no problem, only opportunities to imagine and realize luminous paths with style, on wall, floor or ceiling.

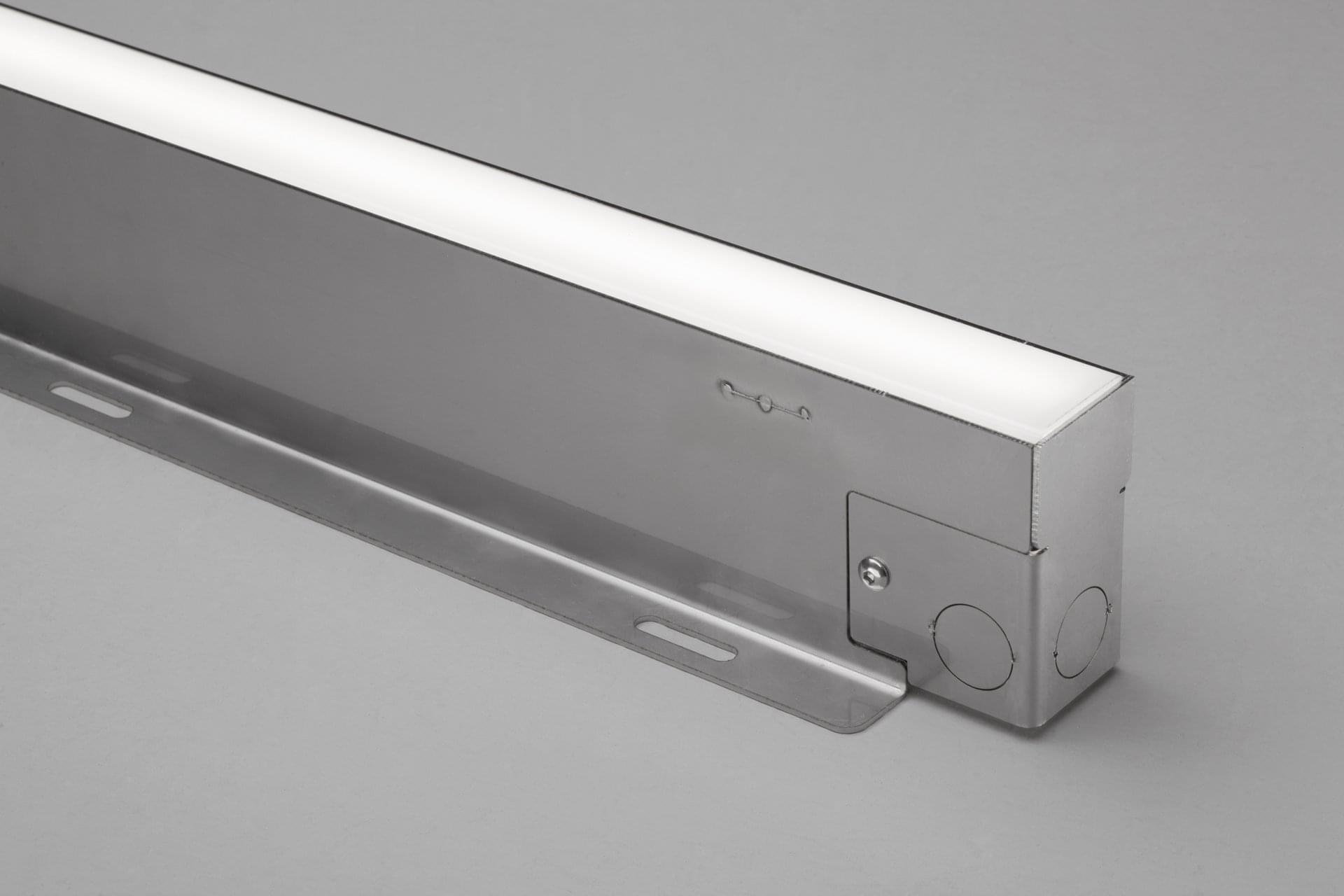

Luminaire designed for flush installation on walls and floors in outdoors and indoors areas. Suitable for power LED sources. Its body is in PMMA

white milk obtained by the processing of co-extrusion and external casing in stainless steel AISI 304.



On request, the casing can be made of stainless steel AISI 316L ensuring full lasting stability even in presence of salt fog. The snap-in installation is allowed through anti-vandal stainless steel springs that make the device particularly suitable for installation in public and private areas.

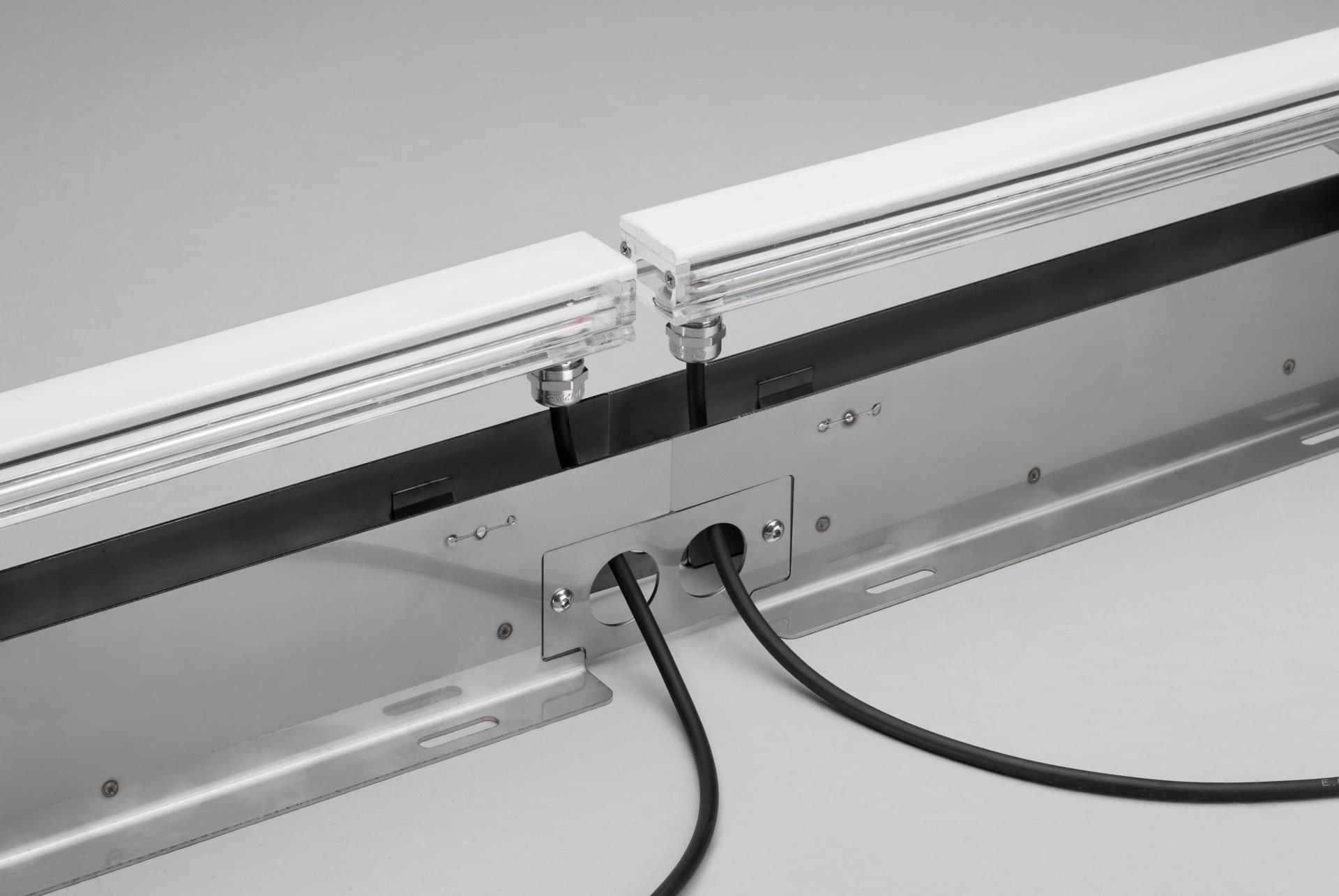

The device is removable via dedicated disassembly key to be ordered separately. The protection degree is IP67. The integrated electronic controls, allow its power supply 24VDC and the parallel connection.



See specification for more information of click here
