Downloads : technical modifications reserved

Specificatie KKDC lini glow xl (pdf)

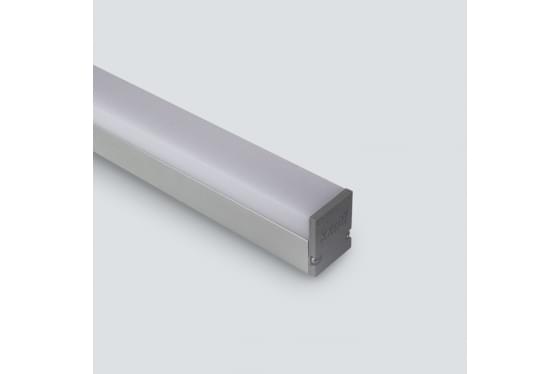

KKDC Lini-glow XL

  • A compact, extensible, linear profile with homogenous diffusion, viewed from 180 degrees.
  • 300 or 1040 lumens per metre output with (>90 CRI).
  • Surface mounted via concealed clips or optional snap on cable channel.
  • CCT: 1900K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K
  • Dynamic LED: 1900K - 5000K
  • Colour: Red, Green, Blue, Orange, Amber
  • RGB



Key applications

  • Architectural detail               • Ceiling
  • Cove lighting                          • Indirect lighting
  • Interior                                     • Mirror back lighting
  • Orientation lighting              • Shelving display
  • Under bench                           • Under cabinet



Key features

  • Custom lengths                     • Diffusion: Homogenous
  • Direct view                              • Extensive CCT range
  • Form factor: Medium           • IP40
  • Output low



See specifications for more information or click here
