KKDC KKFS

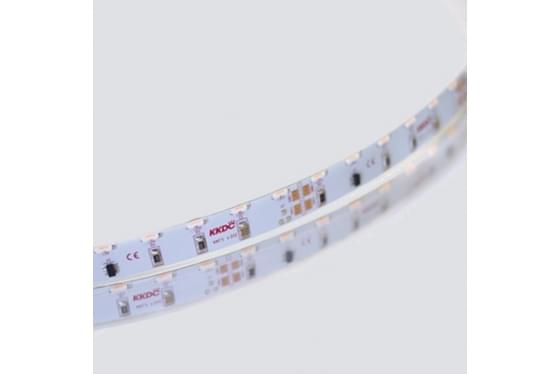

  • Side emitting, flexible linear strip for concealed lighting applications.
  • Dimension: H1.3/W10/L125-7000mm (H0.05/W0.39/L4.92-275.59in) (IP20)
    H5.5/W14/L127-7002mm (H0.22/W0.55/L5.00-275.67in) (IP65)
  • PCB incremen: Power connection possible at 125mm (4.92in), cut point every 62.5mm (2.46in)
  • LED pitch: 12.5mm - 96LED/m (0.49in - 29LED/ft
  • Beam angle: 105°
  • Cover/lens: IP65 version with silicone sheathed Cover



See specification for more information or click here
