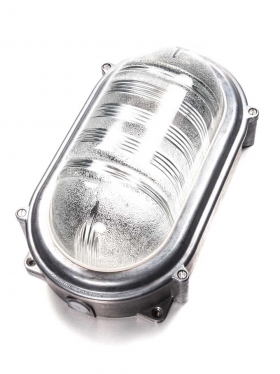

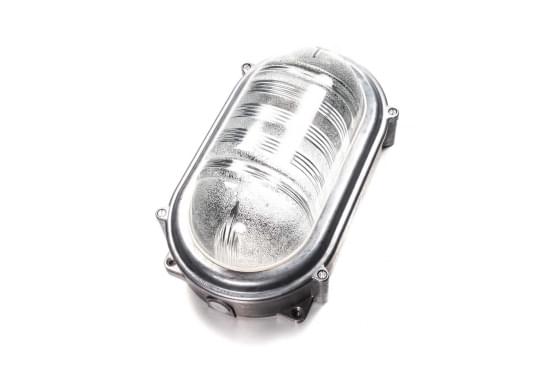

Factorylux Bulkhead
The Factorylux Xicato Bulkhead is available complete with fabric cable and an IP54 rated ceiling rose / cable outlet, or as a stand alone product ready for mounting directly onto an M20 conduit system. The Bulkhead itself is rated to IP65. All Factorylux Xicato products are thermally validated and are covered by Xicato’s 5-year color consistency warranty.
- Light Source: Xicato XTM, Xicato XIM
- IP Rating: IP20, IP65
- CRI: +80 [Xicato Standard Series], +95 [Xicato Artist Series]
- Colour Temperature: 2200K, 2700K, 3000K, 3500K, 4000K
- Beam Angles: wide diffused, diffuse filmv
- Body Material: Cast Aluminium
- Envelope Material: Cast Glass
- Mounting: 20mm Conduit Brass IP Gland, cable, IP Pattress
- Cable Type: 2 core round, fabric covered, 0.75mm CSA
- Cable Colours: Jet Black, Bright Red, Grey, White. Custom colour on request
See specification for more information
