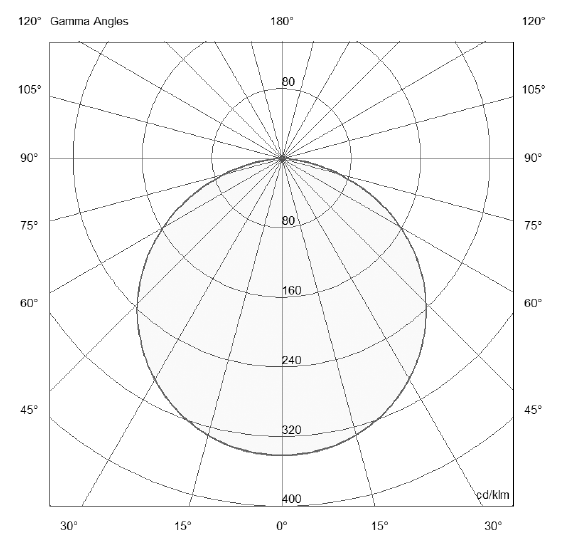

4516-photometrics1735644139 (png) |
datasheet45161735644139 (pdf) |
ATEA NEO SIDE - High Output

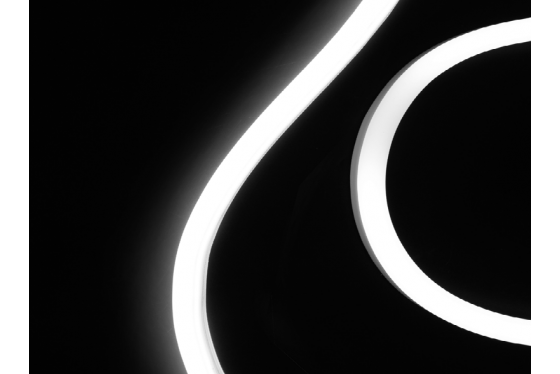

- Dot free flexible LED light line, side bend
A4516
- CCT 2100K - 2400K - 2700K - 3000K - 3500K - 4000K - 5000K - 6000K DW - RGB - RGBW
- Color consistency & CRI OneBinOnly I 90+
- Luminous output & Beam angle (@4000K) 1050 lm & 110°
- Power 15w/m
- Cutting pace White:50 mm I RGB, DW:62.5mm I RGBW:83.3mm
- Dimensions & min. bending radius 5000 x 16 x 15 mm (White 12000mm) I > 200 mm
- Standards IP67 I IK08 I LM80 I ETL I CE Flame Resistant - UV Resistant - Solvent Resistant - Saltwater Resistant
- Ambient temperature - 20°C / + 40°C
- Input voltage & Class 24 Vdc I class III
See specification for more information or click here
