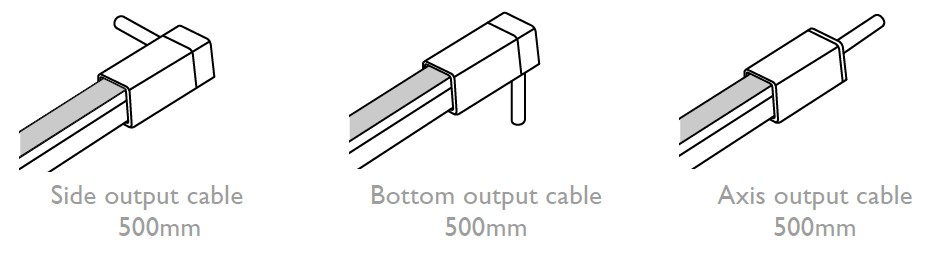

output-cable-neo-side-4550 (jpg) |
ATEA NEO SIDE - Distance

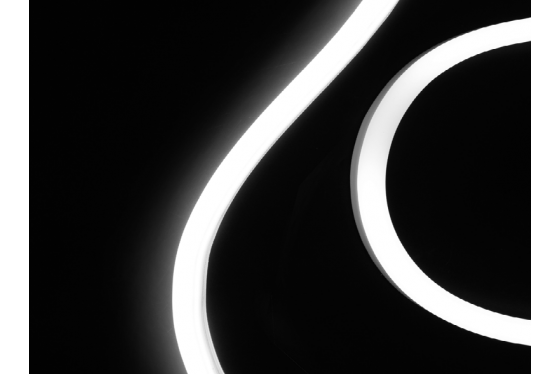

Flexible LED light line, side bend, 48V, 50m in one run
A4550
- CCT 2400K I 2700K I 3000K I 3500K I 4000K I RGB I RGBW
- Color consistency OneBinOnly
- CRI 92
- Luminous output & Beam angle (@4000K) 410 lm (10w/m) I 240 lm (6w/m) & 110°
- Power 6w/m (W) I 10w/m (W I RGB I RGBW)
- Cutting unit 100mm (W I RGB) I 125mm (RGBW)
- Dimensions & min. bending radius 50000 x 12 x 17mm (6w/m) I 20000 x 12 x 17mm (10w/m) I >60mm
- Standards IP67 I IK08 I LM80 I CE I UL Listed Flame resistant - UV resistant - Solvent resistant - Saltwater resistant
- Input voltage & Class 48Vdc I class III
- Ambient temperature -20°C / +40°C
See specification for more information or click here
