ATEA NEO 3D BENDING - NEO 360 D13 SKYLINE

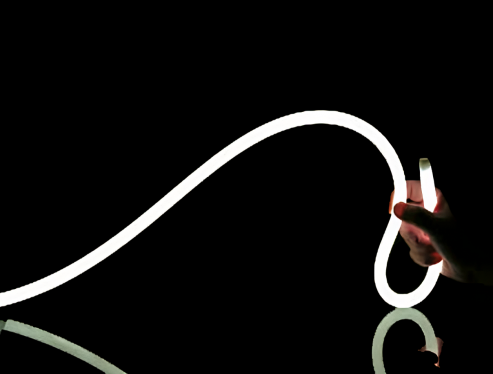

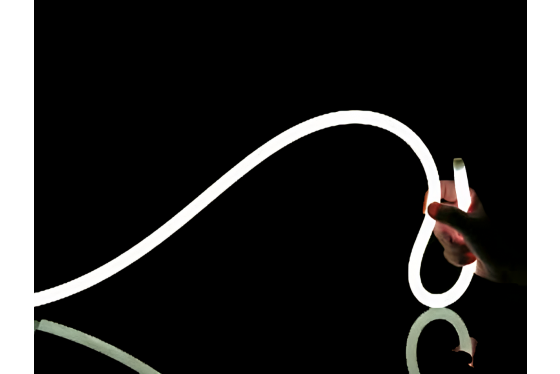

Flexible LED Light Tube, diameter 13mm, 360° output
A4313.

  • CCT 2300K I 2700K I 3000K I 4300K
  • Color consistency Precision de couleur
  • CRI 90
  • Luminous output & Beam angle (@4300K) 700 lm & 360°
  • Power 13 w/m
  • Cutting unit 24V : 25mm | 48V : 50mm

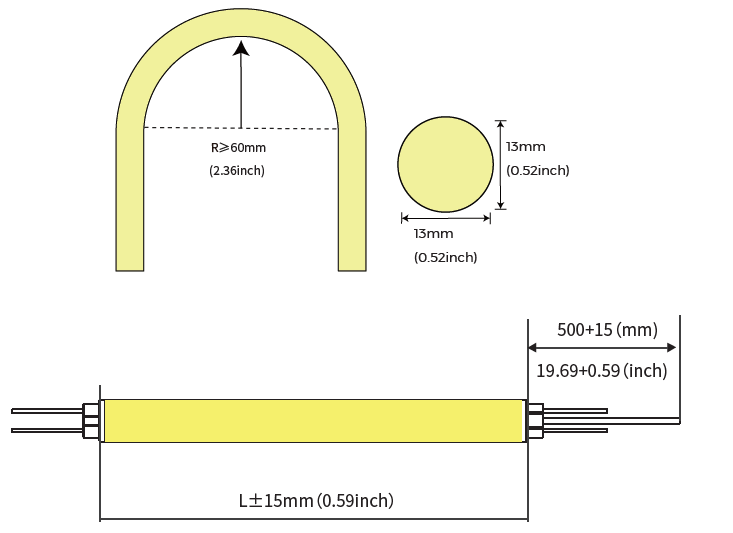

  • Dimensions & min. bending radius (24V) 5000 x D13mm | (48V) 10000 x D13mm - R>60mm
  • Standards IP65 - IK08 - LM80 - CE - UL Listed - Flame resistant - UV resistant - Solvent resistant - Saltwater resistant
  • Input voltage & Class 48Vdc | 24 Vdc | class III
  • Ambient temperature -20°C / +40°C

See specification for more information or click here
