Downloads : technical modifications reserved

c2-stt-m_20240904_e (pdf)

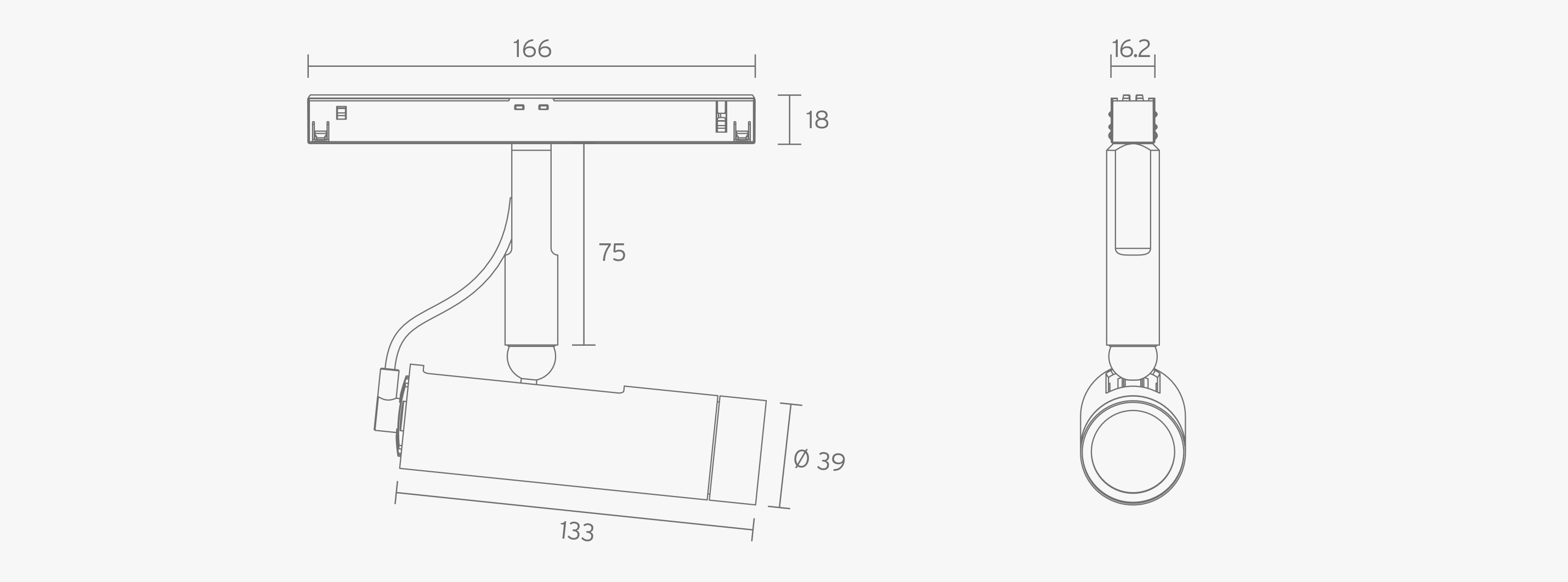

c2-stt-m_edrawing (jpg)

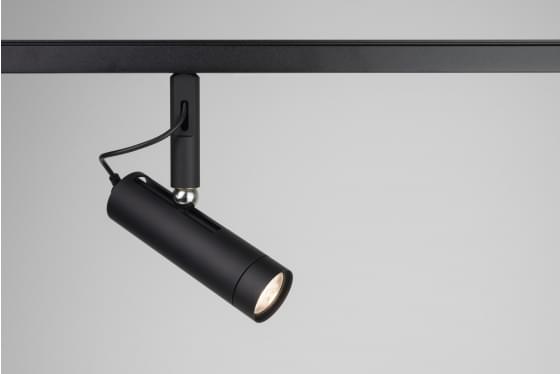

Corporate Friends C2-STT-M with triple lens

LED spotlight for track Multisystem EVO, 360° rotatable, ~160° swivelling

  • part number: A400464
  • housing colour: aluminum anodised matte in black or powder-coated in white RAL 9016
  • optics: 18°, 25°, 32°, 67°; incl. light diffusion foil
  • light colour (+/- 100 K): ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K
  • 3 high power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
  • protection class: IP 20, protection class III, CE
  • luminous flux (~3,000 K | 25° | 1000 mA): ~630 lm at ~9 W (70 lm/W)
  • power input: 48V DC (constant voltage)
  • allowed power supplies: power supply of ELG series by MeanWell with constant voltage 48V DC (other LED driver on request)
  • dimming: DALI or Casambi
  • accessory: suitable for magnetic track type Multisystem EVO A.A.G. Stucchi 48V
  • optional accessories: honeycomb grid, anti-glare tube, inclined tube, snoot, light diffusion foil, barn doors


See specification for more information or click here
