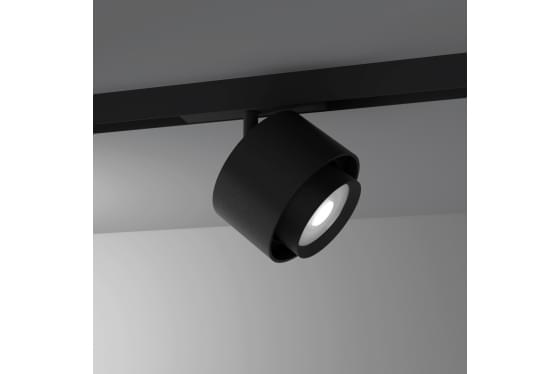

Letroh ViaVai Zoom

ZOOM sources can be moved and added at will, with extreme simplicity, through the snap fastening system. Adjustable optics from 12 to 46 degrees for the best adaptation of the light effect.
Painted aluminum body. Integrated electronics available in “ONE BY ONE” and ON-OFF, 0-10V dimmable, DALI dimmable versions.

ON-OFF version

  • 1 x 13W – 48V
  • 2700K CRI 97 – 831 / 1010 lm
  • 3000K CRI 97 – 878 / 1068 lm
  • White/Black



0-10V Dimmable

  • 1 x 13W – 48V
  • 2700K CRI 97 – 728 lm
  • 3000K CRI 97 – 770 lm
  • White/Black



ONE BY ONE Dimmable

  • 1 x 13W – 48V
  • 2700K CRI 97 – 831 / 1010 lm
  • 3000K CRI 97 – 878 / 1068 lm
  • White/Black

Converter included.
Adjustable optic 12° – 46°
