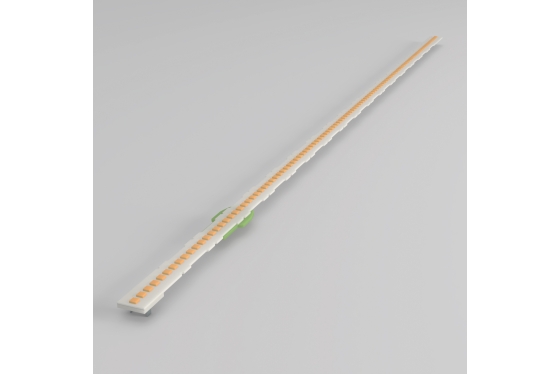

Linear LED board

Dimmable ON-OFF LED board module. Ideal for obtaining a continuous line of light in mono or double emission tracks. FR-4 PCB support. Power and signal pickup contacts with spring pusher.

Dimmable

• 108 LED / 56 cm



9W – 48V – CRI 95

• 2700K – 1080lm
• 3000K – 1152lm



13W – 48V – CRI 95

• 2700K – 1512lm
• 3000K – 1656lm



17W – 48V – CRI 95

• 2700K – 2016lm
• 3000K – 2088lm




Curved LED board
Dimmable ON-OFF LED board module. Ideal for obtaining a continuous line of light in mono or double emission tracks. FR-4 PCB support. Power and signal pickup contacts with spring pusher.

Dimmable

• 152 LED / 78 cm



12W – 48V – CRI 95

• 2700K – 1440lm
• 3000K – 1640lm



16W – 48V – CRI 95

• 2700K – 2310lm
• 3000K – 2460lm



24W – 48V – CRI 95

• 2700K – 2880lm
• 3000K – 3280lm
