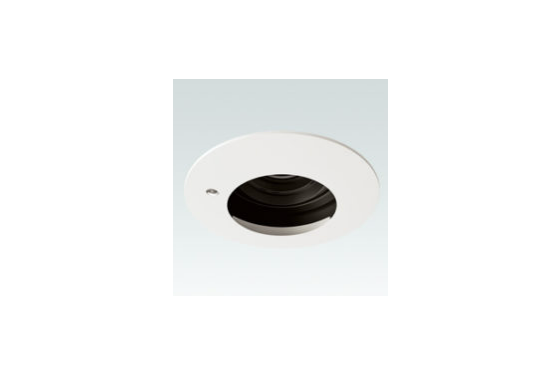

Formalighting Moto-Combo Pro

Body
Moto-Combo PRO are intelligent due to their inbuilt memory, allowing them to instantly recall pre-recorded position, color temperature, beam angle and dim level settings previously recorded via CASAMBI™ control app.
The fixture body made of aluminium and mounting ring of mild steel. Brackets for trim installation on ceiling thickness max. 25mm.
Two DC motors drive the movements of the fixture, which is tiltable vertically 40° in all directions on a dual-axis gimbal.
Zoom version includes a third motor that controls a special lens, which allows beam angle adjustment between 7°-18°.

LED Sources
COB LED, High Power LED, Lumenetix Full Spectrum.
Zoom COB LED.
CRI: 90 | CCT: 3000K, 4000K, FS.
Other CRI and CCT options, Tuneable White and DimToWarm versions available on request.

Optic
Lens.
Beam Angle: Narrow / Medium / Wide.
Zoom version available with a 7°-18° range.

Driver
Supplied with remote dimmable driver.
Motion Control: Casambi.
Dimming Options: Casambi, 0-10V, DALI, DMX.
Colour Tuning: Casambi, DMX.

Accessories
Linear spread, honeycomb louvre, snoot, visor.

Applications
Use of CASAMBI™ scene control to recall Moto-Combo PRO from ground level with scenes, reducing set up time maximizing the portability of space.
Application areas: Exhibition Space, banquet halls, ballrooms, restaurants.
