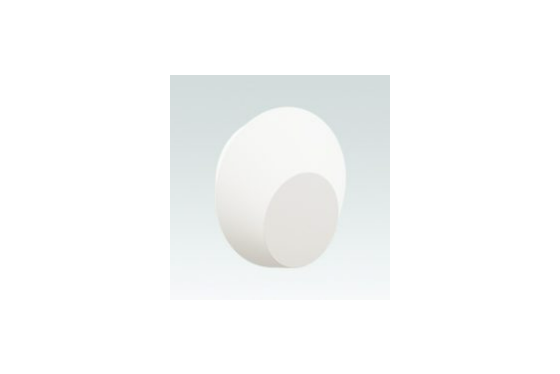

Formalighting Moto-Flap

Body
Motorized wall mounted luminaire.
Light Body and base are made of cast aluminium.
The included wall fixing device is made of painted metal and is equipped with a catch retainer for luminaire easy installation.
Moto-Flap is available in 190mm.
Two remote controlled DC motors drive the movements of the fixture.
A pan horizontal movement of 0-350° to create special light effect and a, shell-like tilt, vertical movement up to 90°.
The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

LED Sources
COB LED.
CRI: 90 | CCT: 3000K, 4000K.
Other CRI and CCT options, Tuneable White versions
available on request.

Optic
Lens + diffuser.
Beam Angle: Extra wide.

Driver
Supplied with integrated dimmable driver.
Motion Control: Casambi.
Dimming Options: Casambi, 0-10V, DALI, DMX.
Colour Tuning: Casambi, DMX.
100-277V 50/60Hz.

Accessories
No accessories available

Applications
The first decorative lamp from formalighting’s award winning MOTOLUX range.
Resembling a pearl oyster shell, Moto-Luce illuminates surrounding surfaces and emits a beam of luminous indirect light.
Application Areas: Hospitality, corridors, lounges.
