Body

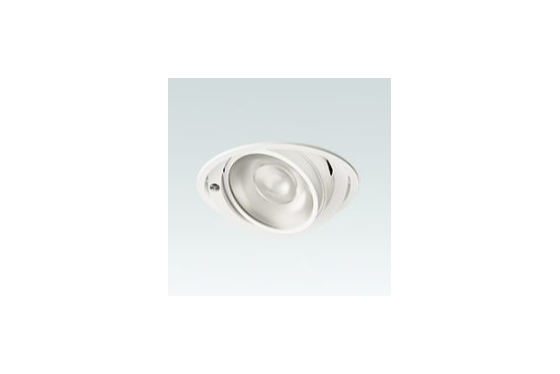

Motorized Gimbal design recessed luminaire.
Mounting trim and Gimbal head are made of cast aluminium.
MotoGimbalo is available in 2 different sizes: 60mm and 130mm.
The luminaire includes brackets for installation on ceiling thickness                max. 25mm.
Two remote controlled DC motors drive the movements of the fixture.
Moto-Gimbalo 60: tiltable 0-40° in two directions and rotatable 350°; Moto-Gimbalo 130: Tiltable 0-40° in all directions on a dual axis gimbals.
A third motor controls a special lens, which allows the user to shape the light beam of the Zoom version between 7°-18°.
The movements and the beam shaping of the fixture, as well as the intensity and the colour tuning of the light, are remote controlled via CASAMBI™ application.

LED Sources
COB LED, High Power LED (Moto-Gimbalo 130), Lumenetix Full Spectrum (Moto-Gimbalo 130), Zoom COB (Moto-Gimbalo Zoom 130).
CRI: 90 | CCT: 3000K, 4000K, FS.
Other CRI and CCT options, Tuneable White and DimToWarm versions available on request

Optic
Lens.
Beam Angle: Narrow / Medium / Wide.
Zoom version available for Moto-Gimbalo 130 with a 7°-18° range.

Driver
Supplied with remote dimmable driver.
Motion Control: Casambi.
Dimming Options: Casambi, 0-10V, DALI, DMX.
Colour Tuning: Casambi, DMX.
100-277V 50/60Hz.

Accessories
Linear spread, honeycomb louvre, snoot, visor.

Applications
A classic formalighting fixture with the bost of MOTOLUX technology.
Applications areas: retail, hotels, restaurants, hospitals, lobbies, gyms.
