Formalighting Moto-Zero

Body

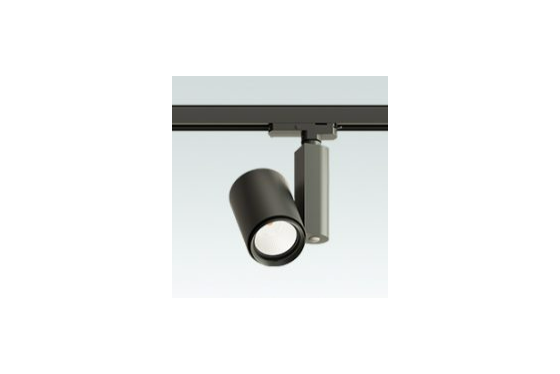

Track-mounted spotlight with cast aluminum light head and control gearbox.
Moto-Zero is available in 3 sizes: 66mm, 100mm, and 130mm. Three-phase Eurotype track adapter is included with the fixtures.
Two DC motors drive the fixtures, tilting them vertically up to 90° in two directions and rotating them horizontally 350°.
In Moto-Zero 66 Zoom, a third motor controls a lens that shapes the light beam from narrow to wide.

The movements and the beam shaping of the fixture, as well as the intensity and the color tuning of the light, are controlled via DMX or CASAMBI™ application.

LED Sources
COB LED.
High Power LED.
Lumenetix Full Spectrum.
Tuneable White. RGBW (Moto-Zero 130).
CRI: 90 | CCT: 3000K, 4000K, Full Spectrum, Tuneable White.
Other CRI and CCT options available on request.

Optic
Lens or Reflector (according to the chosen model/light source).
Beam Angle: Super Narrow (7°) / Narrow / Medium / Wide.

Driver
Dimmable driver integrated in the gear box.
Motion Control: Casambi.
Dimming Options: Casambi, 0-10V, DALI, DMX.
Colour Tuning: Casambi, DMX.
100-277V 50/60Hz.

Accessories
Linear spread, honeycomb louvre, Visor, Snoot.

Applications
A stylish motorized spotlight created for the purpose to meet the highest requirements of the most advanced lighting technology.
Application areas: retail, museums, hospitality, offices.
