Corporate friends R-SL-16-PL

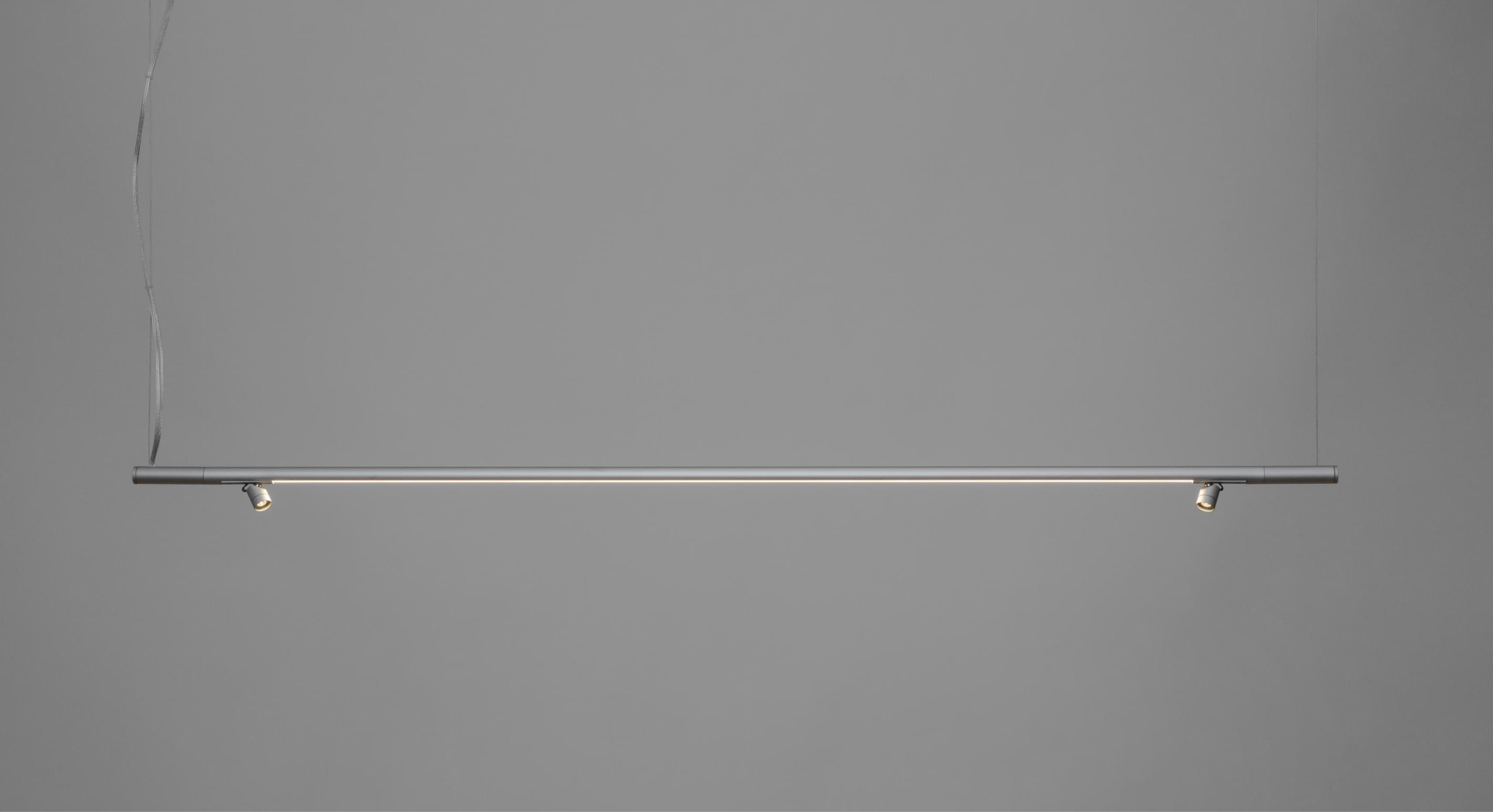

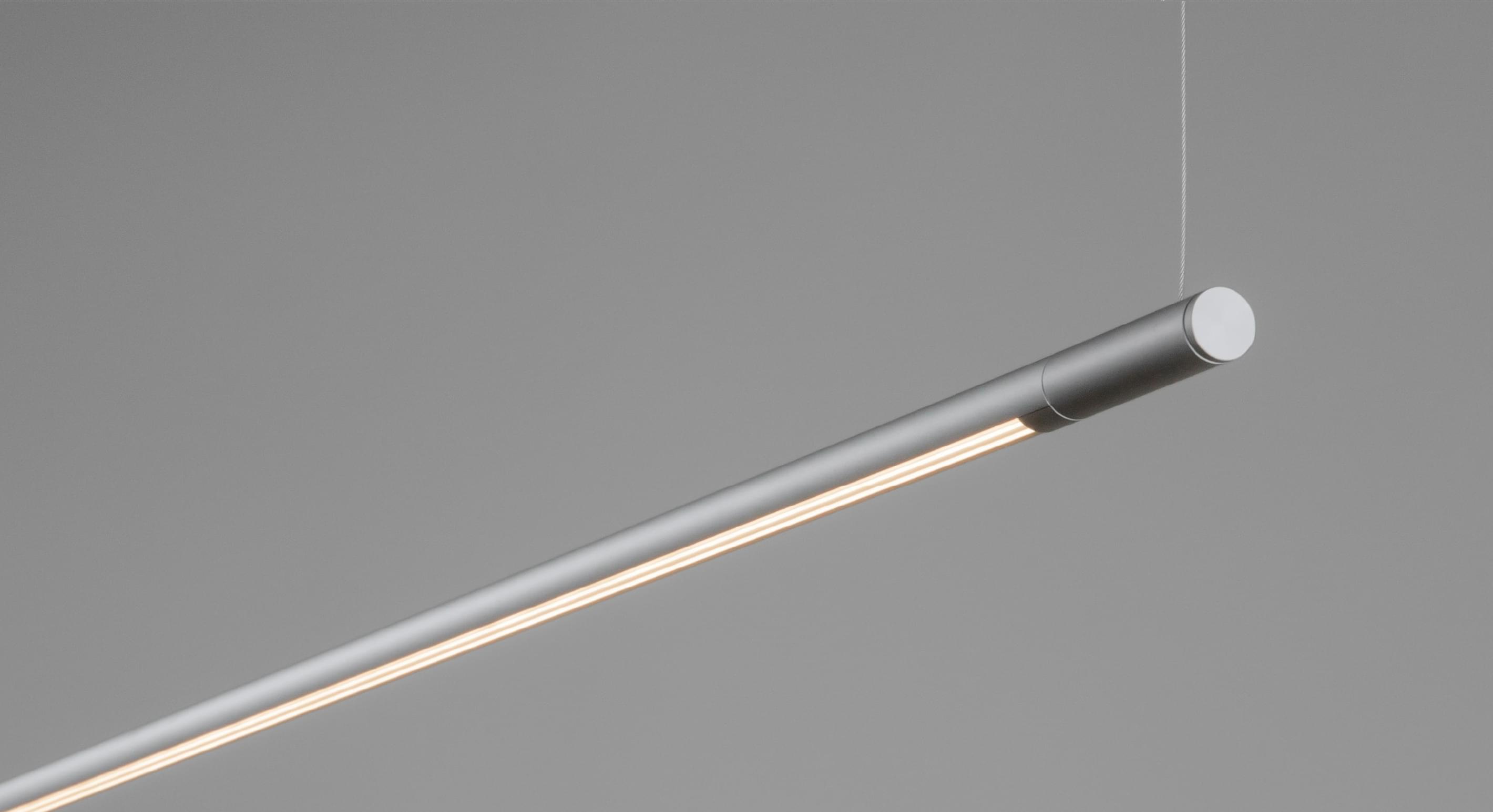

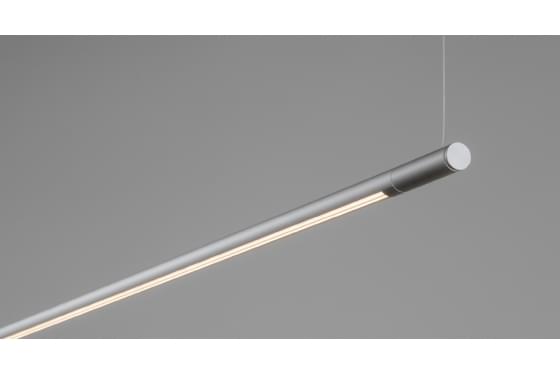

LED pendant lamp, profile Ø 16 mm, 360° rotatable

  • housing colour: aluminum anodised black, silver, gold
  • LED: mid power LED, high CRI DIN EN 55015:2013,
    lifetime 50,000 hours | basis of lifetime L80B10
  • protection class: IP 20, protection class III, CE,
    UL Listed No. E506729 - low voltage LED luminaire
  • power input: 24V DC (constant voltage)
  • allowed LED supply: power supply of PWM series by MeanWell
    with constant voltage 24V DC, class 2
  • additional power supply is required for C1-mini-R-SL spotlight:
    LPF, LPV, NPF or APV by MeanWell
    with constant voltage 12V DC, class 2  (other power supplies on request)
  • dimming: external
  • optional accessories:
  • anti-glare profile, aluminum anodised black, silver, gold or powder-coated according to RAL, light diffusion foil, LED spotlight C1-mini-R-SL


See specification for more information or click here
