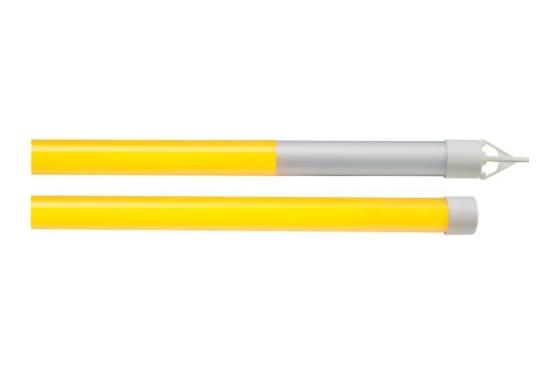

Encapsulite T8 HFI Stick-Lite

The T8 HFI Stick-Lite is a slim, tubular design that can be surface-mounted, suspended or placed in a Z stand. This fitting offers 360° light distribution through its polycarbonate satin diffuser. The T8 HFI Stick-Lite is a popular option for use in window and shop displays and is also widely used within the TV and theatre industries.

  • For internal use only
  • Surface mounted or suspended
  • Uses T8 fluorescent lamps

Can be used with coloured DDP sleeves

Fittings are supplied with clear mounting brackets, suspension kits need to be purchased separately

Technical Info

  • Light Source information Integral ECG
  • Source Info Fluorescent tube
  • Dimming Not available
  • Optics Satin polycarbonate diffuser
  • Installation Horizontal, vertical, angled suspension or surface mounted
  • Lumens 1140lm – 4710lm
  • Colour Temp 3000K, 4000K, 6500K
  • Lifetime Up to 20,000hr
  • Voltage 230V, 50-60Hz
  • Safety Class II
  • IP Rating IP20

See specification for more information or click here
