ATEA LEDSTRIPS OTHER PRODUCTS - 3D

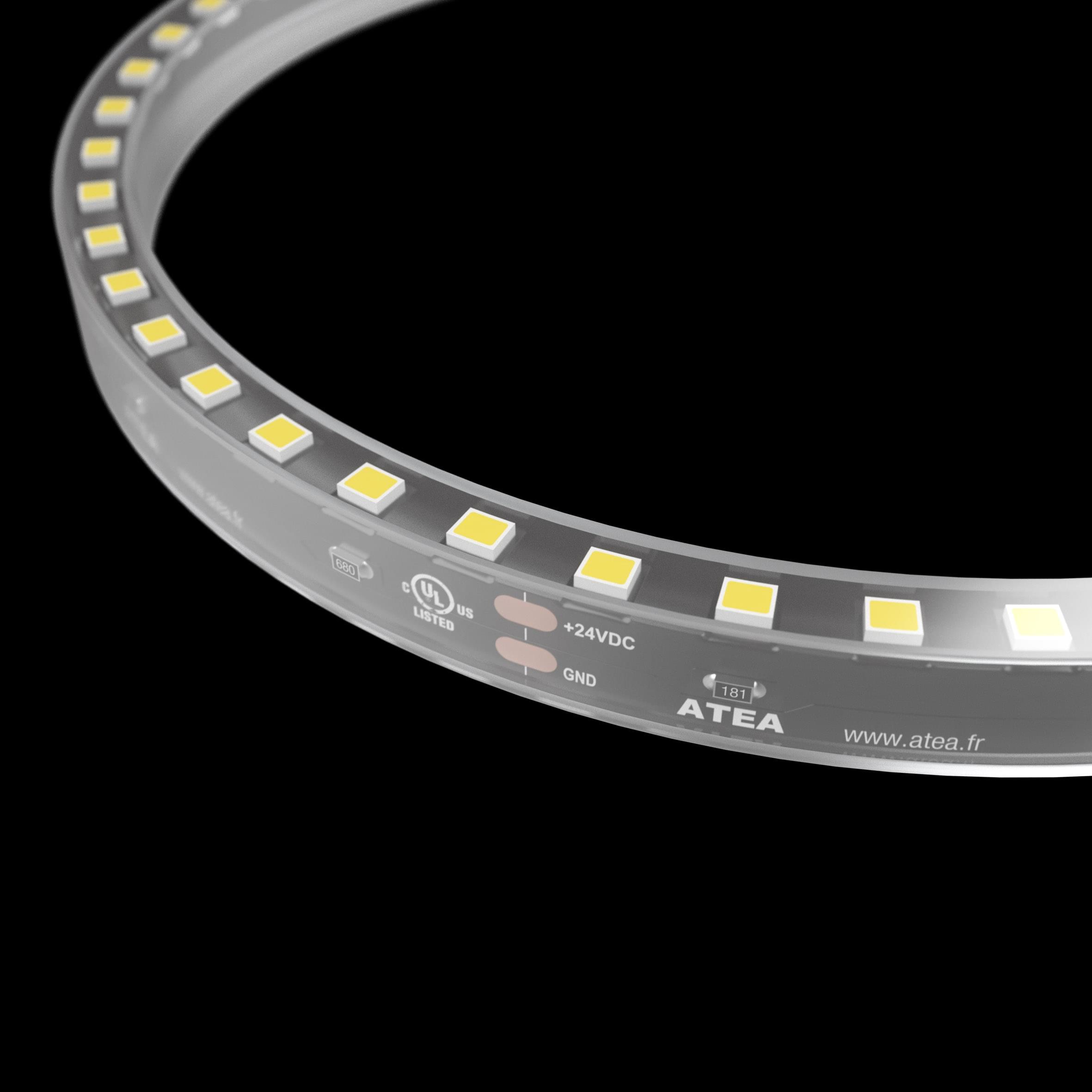

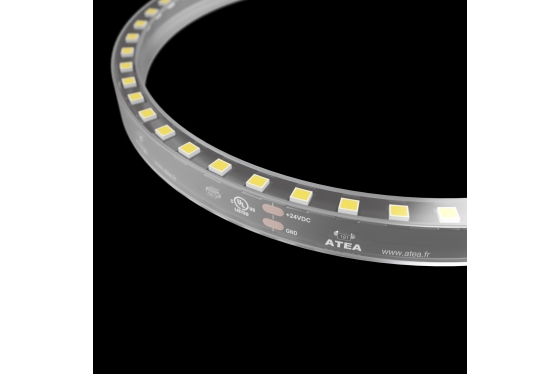

3D led strip – 90 to 180 angle bend application A4103

  • Color Rendering CRI 98 (+/-2)
  • Color CCT 1800K - 2100K - 2400K - 2700K - 3000K - 3500K - 4000K - 5000K - 6000K
  • Efficacy 60 lm/w - 90 lm/w
  • Power & number of Led 10 w/m & 120 led/m

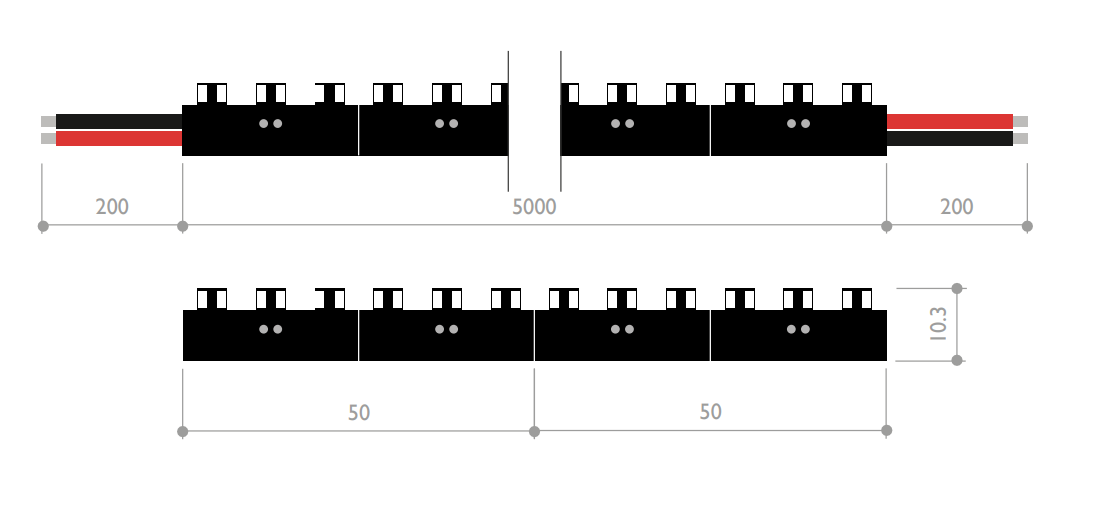

  • Dimensions 5000 mm x 12 mm x 6 mm
  • Ambiant temp. - 10°C / + 40°C
  • Pitch 120 led/m = 8,33 mm

    See specification for more information or click here.
