ATEA LEDSTRIPS PIXEL - Pixel RGBW

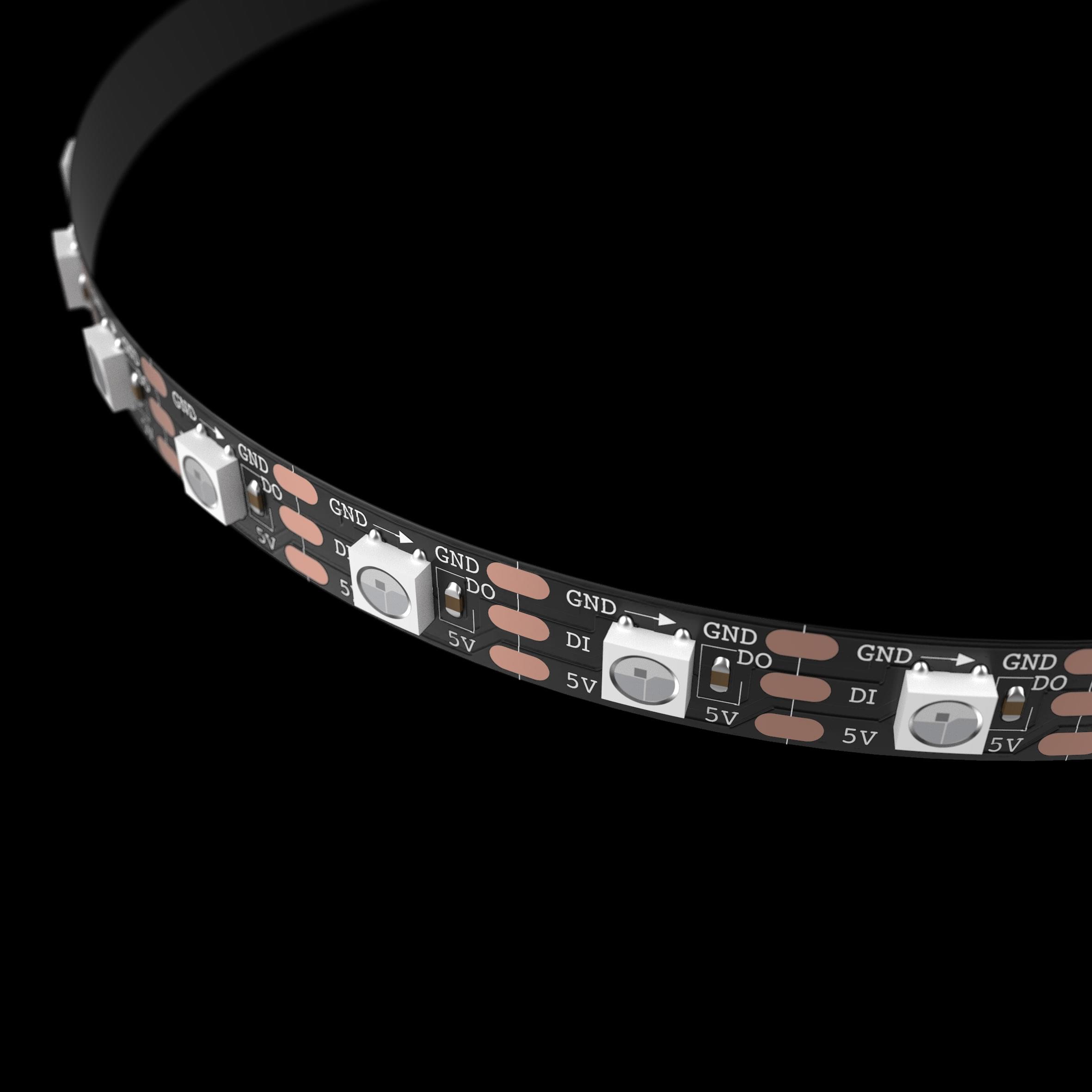

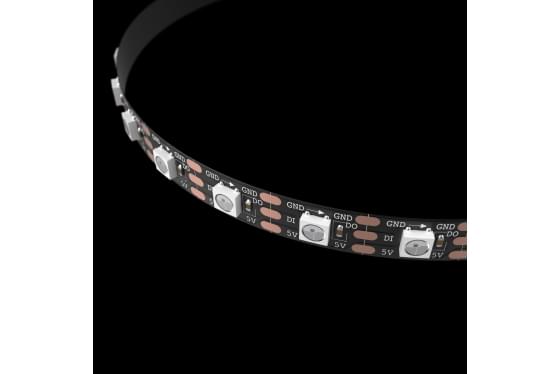

RGBW DIGITAL strip with latest Monochip LED generation A4124

  • Color R 620/625 nm | G 520/525 nm | B 465/470 nm
  • White CCT3000K - 4000K - 6000K
  • White Color Rendering CRI 82 (+/-2)
  • Luminous output 655 lm/m (5v) | 758 lm/m (12v/24v)
  • Power 12w/m (5v) | 18w/m (12v/24v)
  • Number of led 60 leds/m

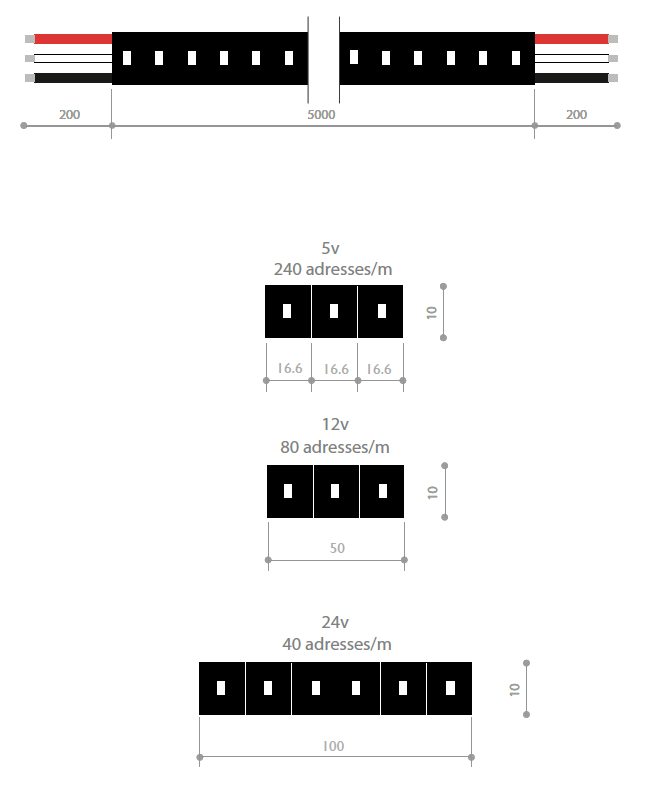

  • Cut 16.6mm (5v) I 50mm (12v) I 100 mm (24v)
  • Protocol SK6812 compatible with WS2812 (5v) I UCS2904 (12v/24v)
  • Pitch 60 leds/m = 16.7 mm

    See specification for more information or click here.
