ATEA LEDSTRIPS PIXEL - Pixel Triple White

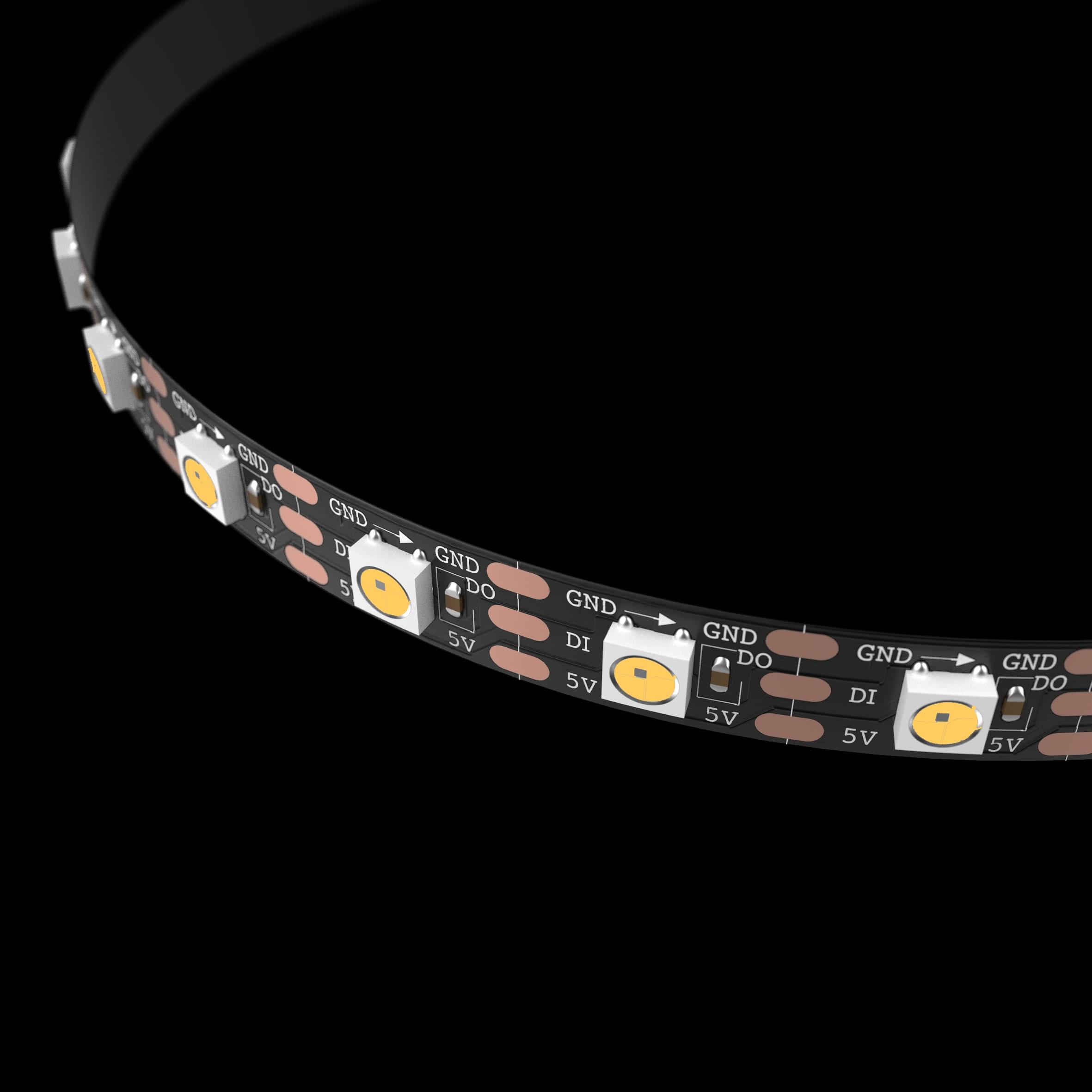

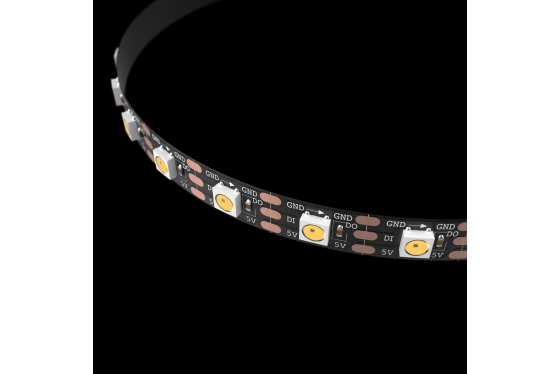

Digital Triple White strip with latest LED generation A4123
- Color Rendering CRI 90 (+/-2)
- Color CCT 1900K/2800K/6500K
- Power & number of Led 18 w/m & 84 leds/m (12v) - 22 w/m & 72 leds/m - 26 w/m & 144 leds/m

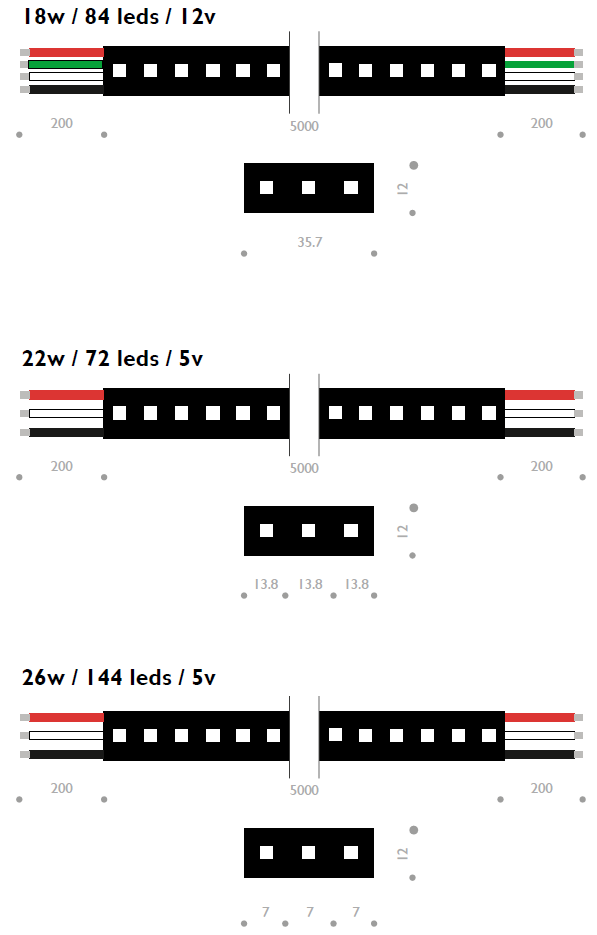

- Cut 35.7 mm (84 leds/m) - 13.9 mm (72 leds/m) - 6.9mm (144 leds/m)
- Dimensions 5000 x 12 x 2 mm
- Ambiant temp. -5°C / + 40°C
- SPI protocol TM1934 (12v) I 8812 (5v)
See specification for more information or click here.
