ATEA LEDSTRIPS CRI>90 - Regular

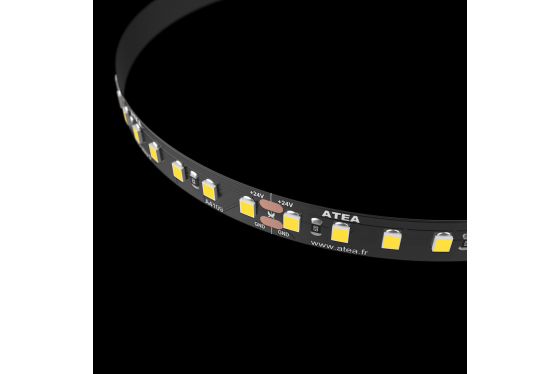

CRI93 strip with latest LED generation A4109

  • Color Rendering CRI 93 - R9>70
  • Color CCT 1800K - 2100K - 2400K - 2700K - 3000K - 4000K - 6000K - R - G - B - Y
  • Luminous Efficacy 90 lm/W - 110 lm/W
  • Power & number of Led 24 w/m & 240 leds/m | 24 w/m & 120 leds/m | 12 w/m & 60 leds/m

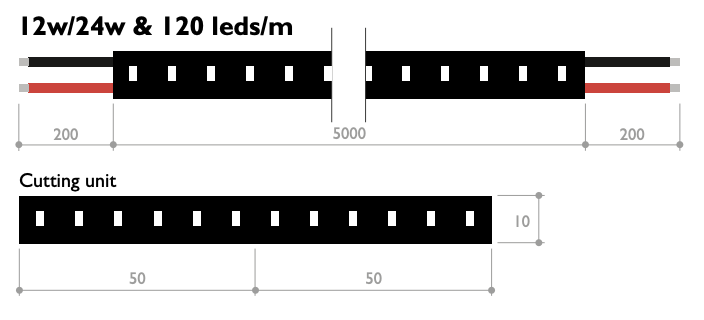

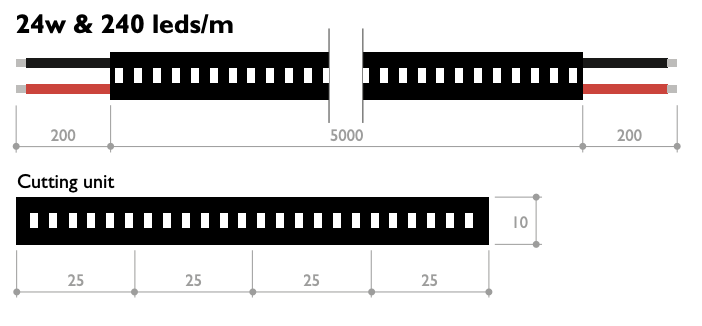

  • Dimensions 5000 x 10 x 2 mm (24w/m) | 5000 x 8 x 2 mm (12w/m)
  • Pitch 240 led/m = 4.17 mm I 120 led/m = 8,33 mm I 60 led/m = 16,67 mm

    See specification for more information or click here.
